Resistivity measurement using Microwave Frequency Q-Meter with Single Post Dielectric Resonator (SiPDR).
SiPDRs are intended for the measurements of the surface impedance of metamaterials and resistive films as well as for the contact-less measurements of the conductivity of semiconductor wafers. Range of thin film materials that can be measured includes resistive layers, thin metal films and conductive polymer films with the surface resistance Rs < 20 kΩ/square. For semiconductor wafers the upper limit for resistivity measurements is about 1000 Ωcm. Semiconductors with higher resistivity values can be conveniently measured with split post dielectric resonators.
Use of inexpensive computer controlled microwave oscillator system, Microwave Frequency Q-Meter, enabling quick and automatic measurements of permittivity, dielectric loss tangent and resistivity with a dedicated SPDR or resistivity and sheet resistance with a dedicated SiPDR.
To determine resistivity, only two measurements should be performed. The first one, called reference measurements, is performed for empty resonator. The second one - for resonator containing test sample.

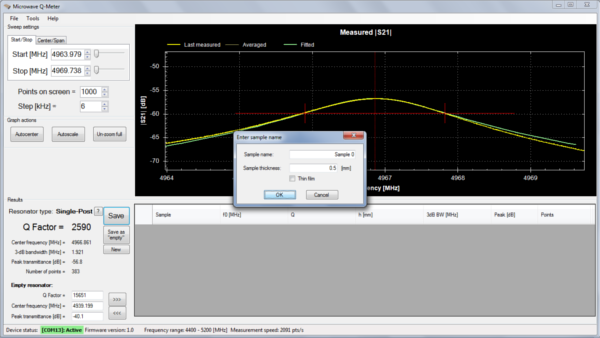

The only external information is the thickness of the sample under test.
Microwave Frequency Q-Meter connected to the SiPDR and to the computer. Dedicated application allows controlling measurement process and enables easy management of the measurements results.
Range of resistivity measurements for the SiPDR: 10-5 - 103 Ωcm.

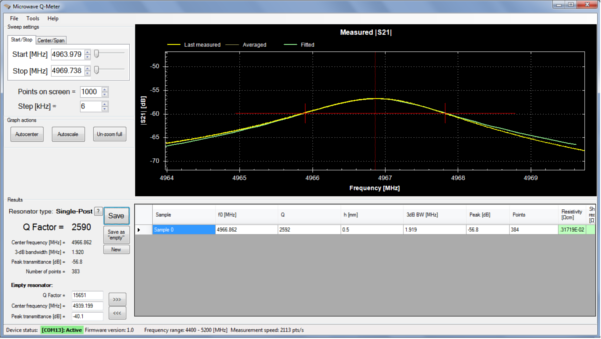

The measured resistivity will appear in the green column.
