1.6     Project preparation ppw7

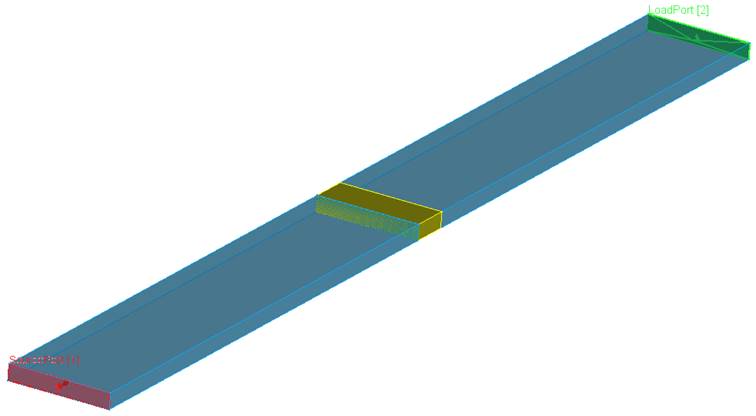

The model is a parallel plate transmission line excited with a plane wave (red transmission line port) and terminated with a load port (green transmission line port) matched to the line. The transmission line is filled with air and a concrete material slab is placed in the middle.

The project creation process can be divided into several steps:

• New project

• Defining the type of the structure and background medium

• Drawing the structure

• Drawing the ports

• Setting boundary conditions

• Setting up the mesh

• Exporting the project and running the simulation
