2.2     QuickWave BOR

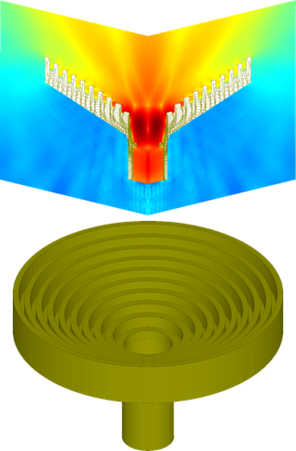

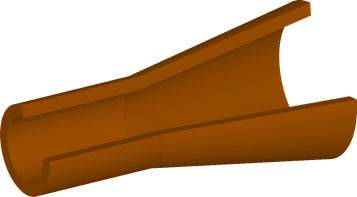

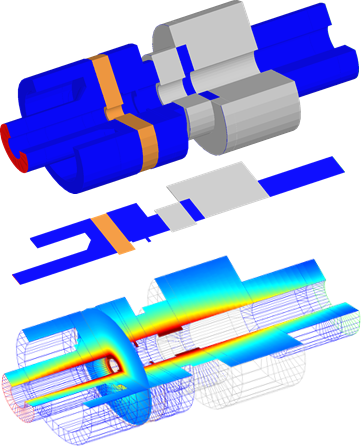

 QuickWave BOR (V2D) is a unique on the market and ultra fast Vector 2D (QW-V2D) electromagnetic solver is applicable to the analysis of axisymmetrical devices (which are also called Bodies Of Revolution) as large as 2100 wavelengths, including antennas (horns, rods, biconical), circular waveguide discontinuities, and resonators. It is based on the Maxwell equations re-expressed in cylindrical coordinates. Definition of a 2D long-section of the structure allows for hundreds times faster simulation than brute force 3D analysis.

See User Guide V2D for more information.
