2.9     QW-Modeller

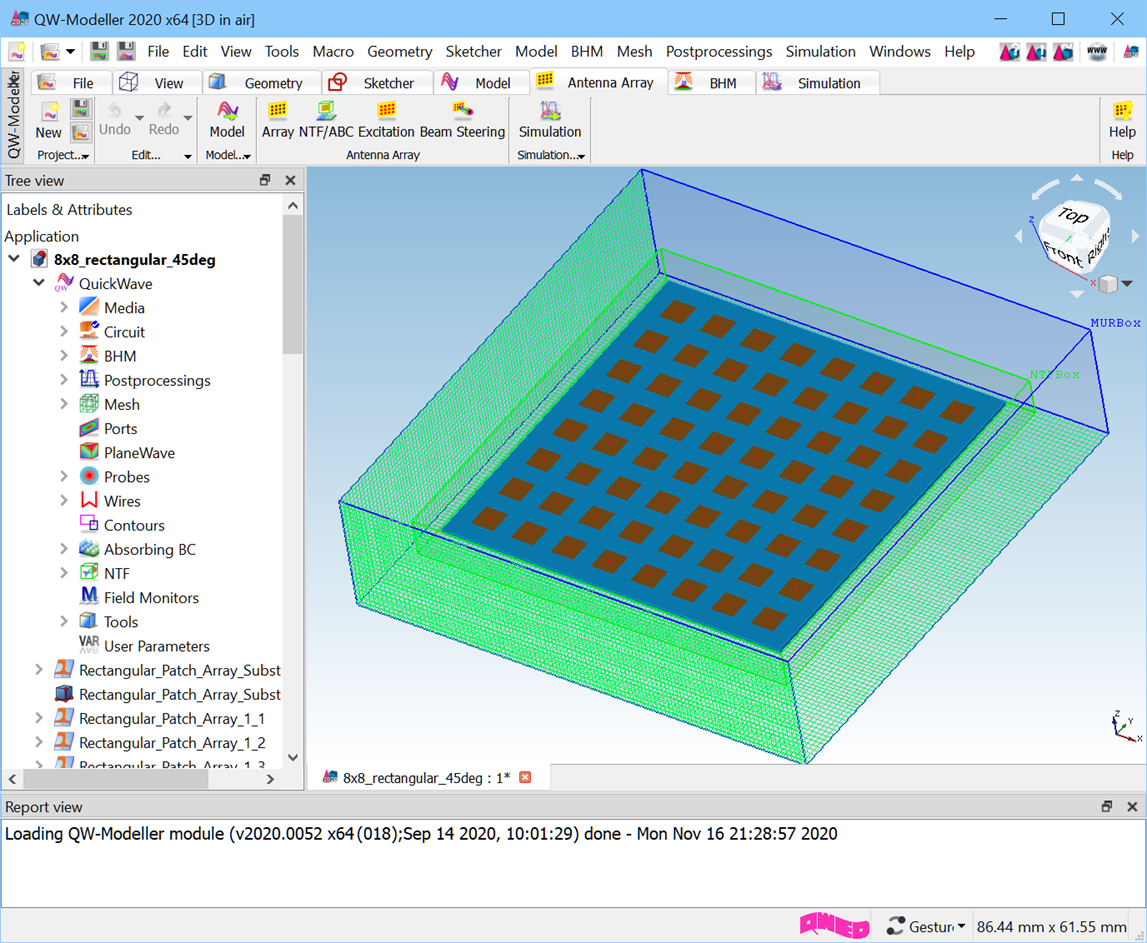

 QW-Modeller for QuickWave is a plug-in for the open source FreeCAD general purpose parametric 3D CAD modeler and allows preparing a complete project for electromagnetic simulation with QuickWave software. It is free and can be used without any restrictions for creating geometry, assigning the materials, adding ports, boundary conditions, setting mesh, excitation parameters, postprocessings, etc.

See QW-Modeller manual for more information.
