19  Balanced antipodal Vivaldi antenna

This example is available in .../QW-3D/Standard/Antennas/Vivaldi/vivaldi.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Planar Vivaldi antenna was presented in October 2000 issue of Microwave Engineering Europe.

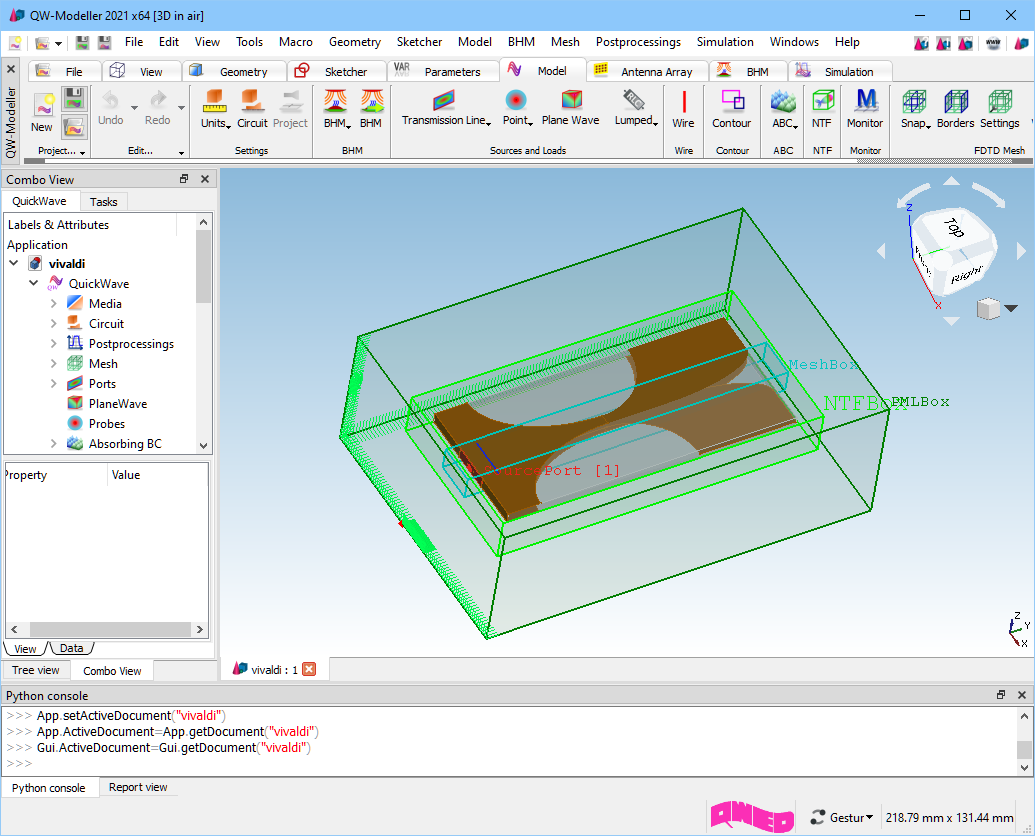

Geometry

The geometry of the antenna is described in: http://i.cmpnet.com/edtn/europe/mwee/pdf/CAD.pdf

According to the reference paper the antenna is surrounded by Perfectly Matched Layer (PML) absorbing box.

Post Processing

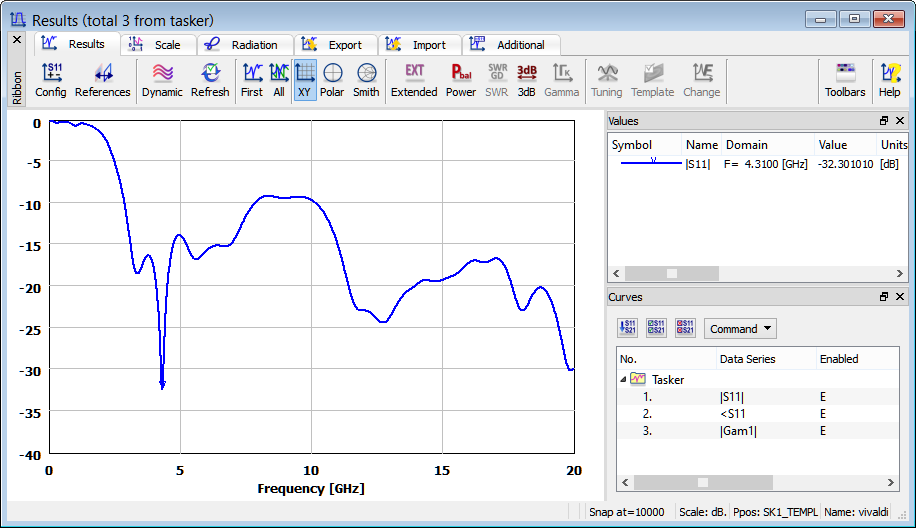

Reflection coefficient of the Vivaldi antenna.

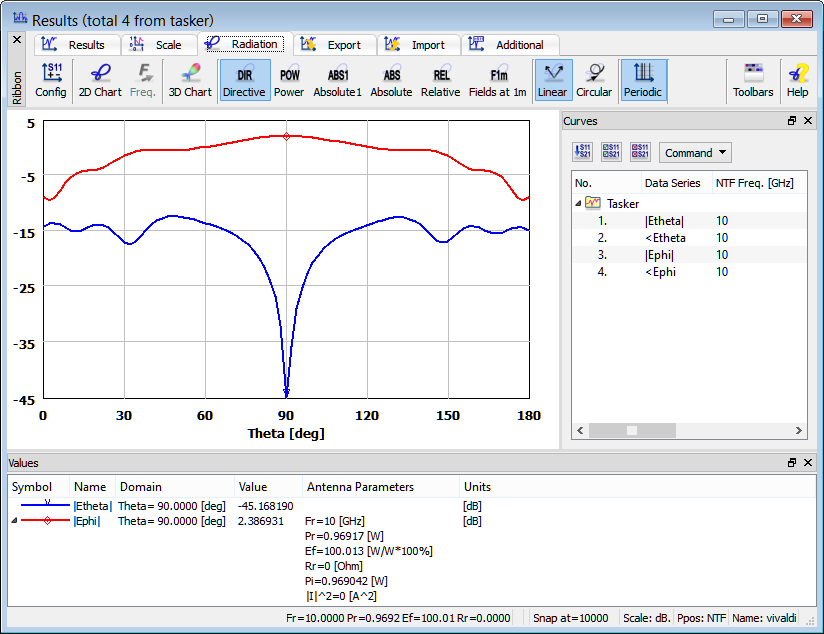

Radiation pattern of the Vivaldi antenna at 10 GHz.
