23  Coaxial line device

This example is available in .../QW-3D/Standard/Coax/Ex0/Ex0.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

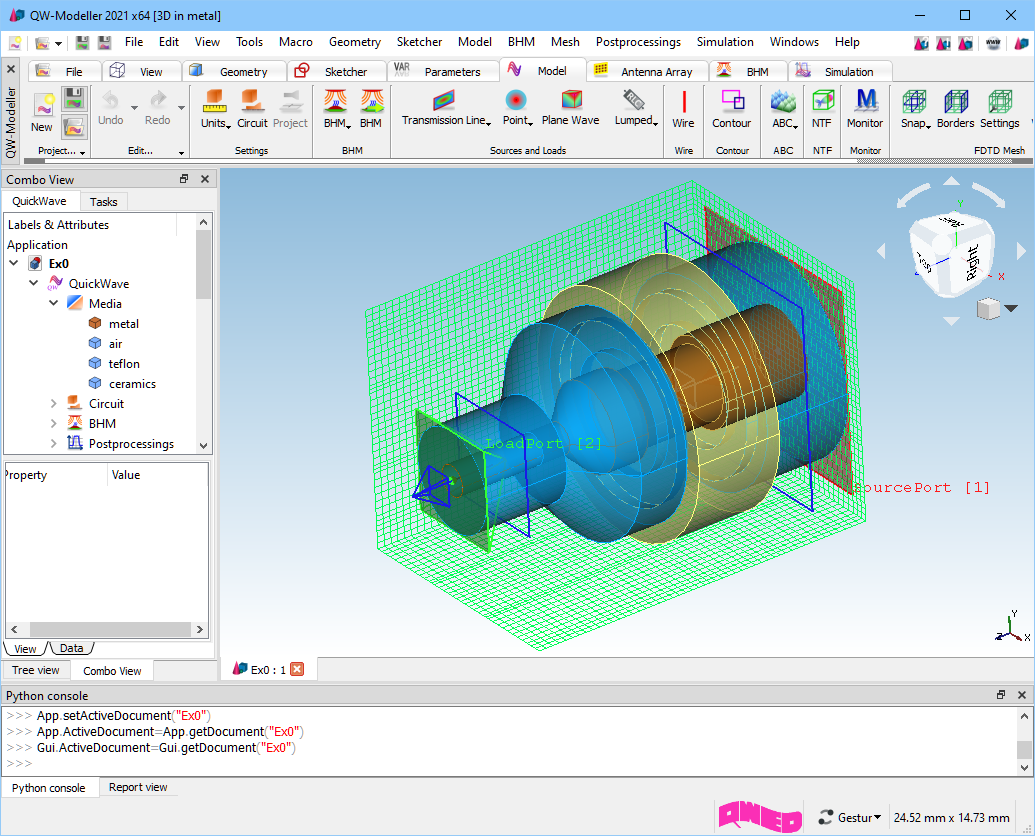

The structure is a coaxial line device with 50 Ω characteristic impedance and different radii of inner and outer conductors at an input and output.

Geometry

The radius of inner and outer conductor of the input coaxial line are 1.5 mm and 3.5 mm, respectively. The radius of inner and outer conductor of the output coaxial line is 0.5 mm and 1.8 mm, respectively.

Post Processing

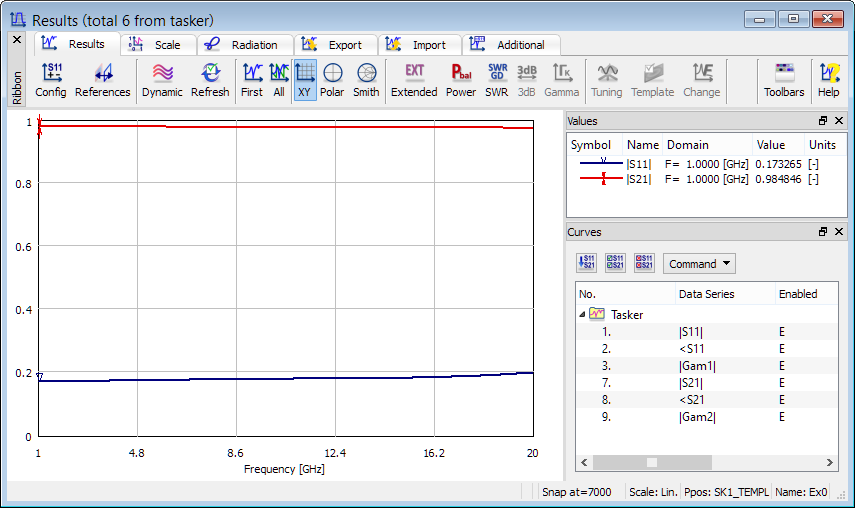

S-parameters for the coaxial line device in View Results window.
