29  Heating in circular waveguide with circular polarisation

This example is available in .../QW-3D/Standard/Heating/Cwgheat/cwgcir.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Circular waveguide for heating with circular polarisation.

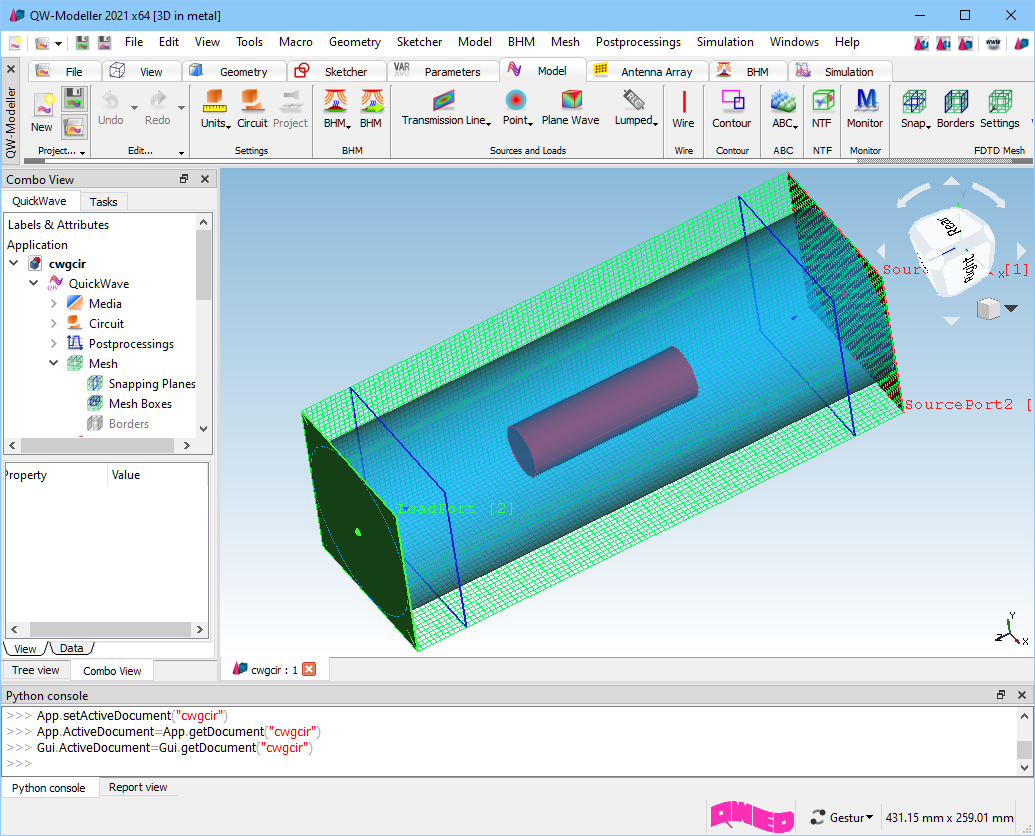

Geometry

The waveguide’s dimensions of a vertical cylinder are: radius 50 mm, height in Z direction 300 mm.

The load dimensions of a vertical cylinder are: radius 15 mm, height in Z direction 100 mm.

Field Distribution

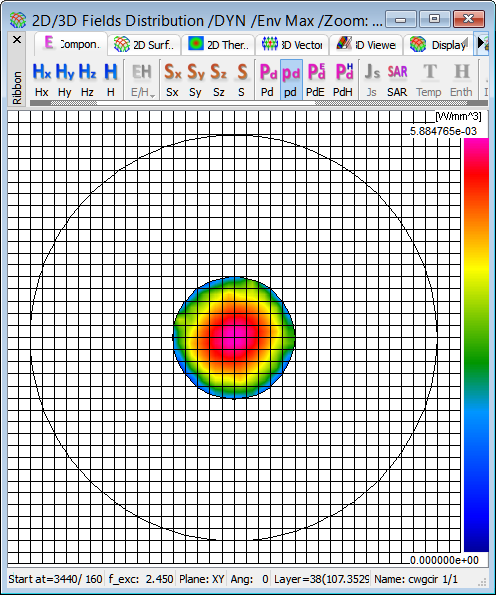

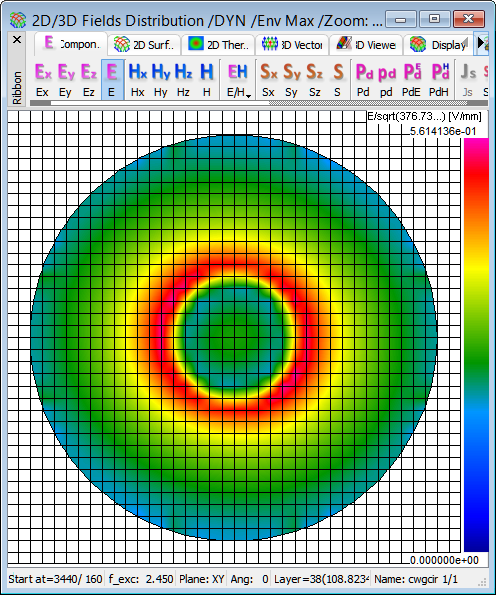

Thermal continuous display of the envelopes constructed across the load between 3440 and 3600 iteration of cwgcir.QWpro: dissipated power density, SAR, and total electric field, and Poynting vector.
