37.1 Field distribution in rectangular dielectric resonator

This example is available in .../QW-3D/Standard/Resonators/Qcuboid/Q_cuboid.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

The python script for this example is available in .../QW-3D/Standard/Resonators/Qcuboid/Q_cuboid1.FCMacro script and can be loaded using Macro®Macros... command from main menu.

General Description

Rectangular dielectric resonator with sinusoidal excitation.

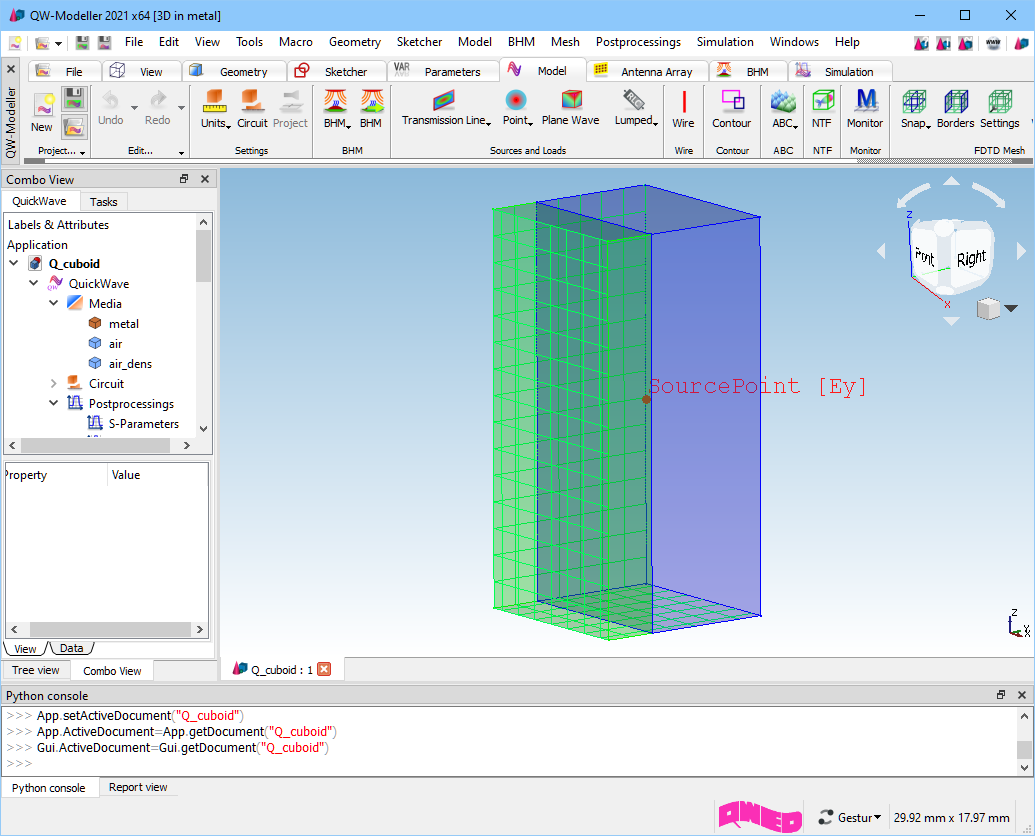

Geometry

The resonator's inside dimensions are 7 mm, 5 mm, 15 mm in X, Y, Z directions respectively. The dielectric object’s dimensions are 7 mm, 2 mm, 15 mm in X, Y, Z directions respectively.

Field Distribution

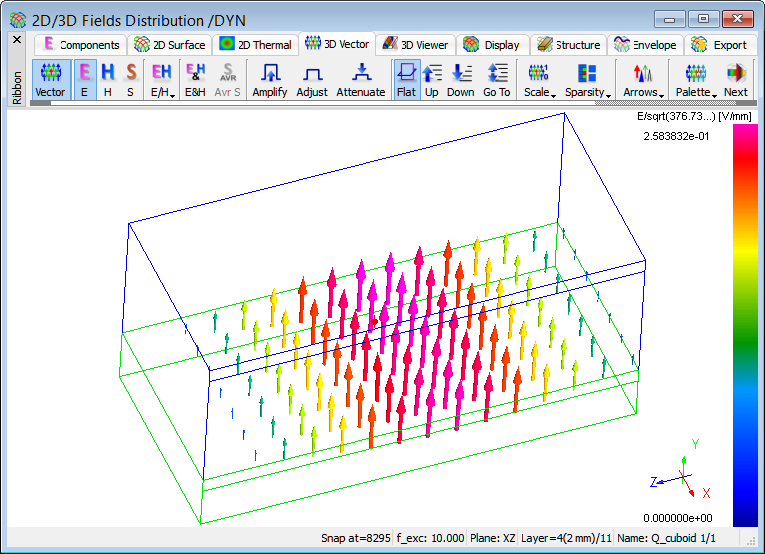

Vector display of the total electric field of Q_cuboid.QWpro.

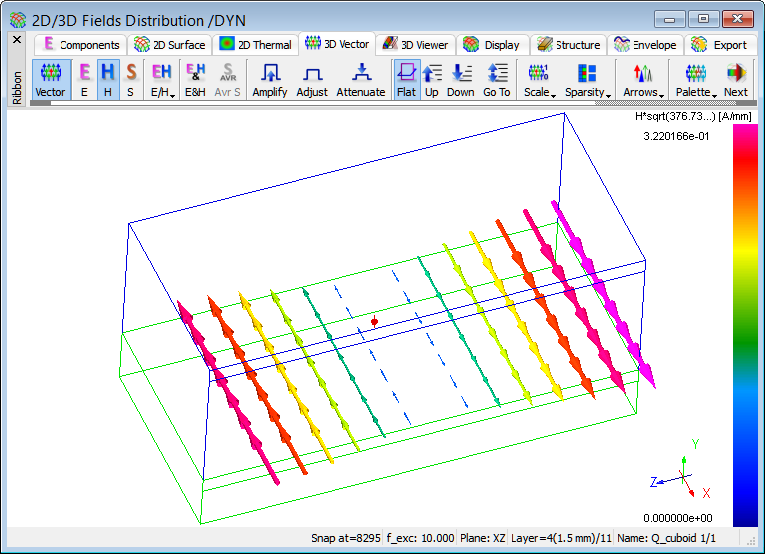

Vector display of the total magnetic field of Q_cuboid.QWpro.
