37.3 Field distribution in 3DP rectangular dielectric resonator

This example is available in .../QW-3D/Standard/Resonators/Qcuboid/Q_cuboid_3DP.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Rectangular 3DP dielectric resonator with sinusoidal excitation.

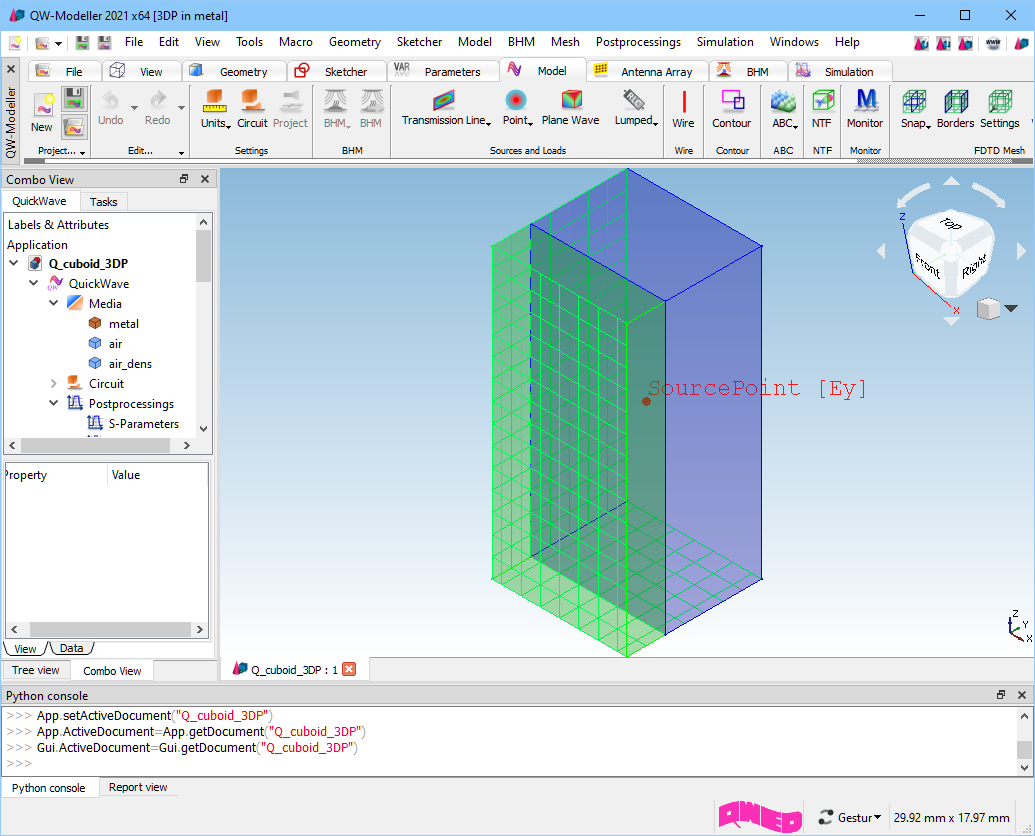

Geometry

The resonator's inside dimensions are 7 mm, 5 mm, 15 mm in X, Y, Z directions respectively. The dielectric object’s dimensions are 7 mm, 2 mm, 15 mm in X, Y, Z directions respectively.

Field Distribution

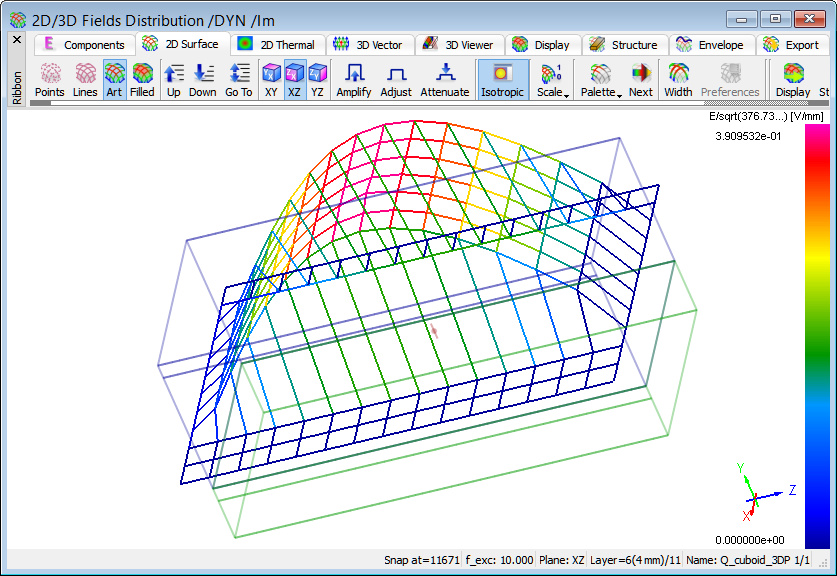

Surface Lineas-Art display of the total electric field of Q_cuboid_3DP.QWpro in real grids (the left picture) and imaginary grids (the right picture).
