3.5     Defining post-processings for simulation

Now we can proceed to the last step, namely setting up the post-procesings. For that purpose we switch to the Simulation tab. In this case we are interested in the S-parameters calculations and radiation patterns at 20 and 25 GHz. Thus we press S  button and then NTF  button and configure the post-processings as in the following pictures.

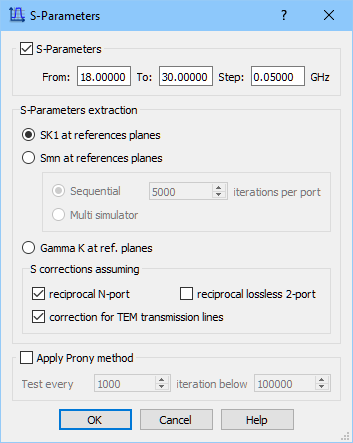

S-Parameters dialogue settings for the horn antenna.

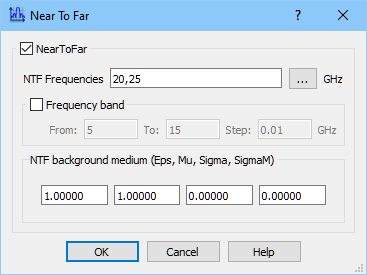

Near To Far dialogue settings for the horn antenna.
