41  Waveguide bend

This example is available in .../QW-3D/Standard/Various/Wgbend/wgbend.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

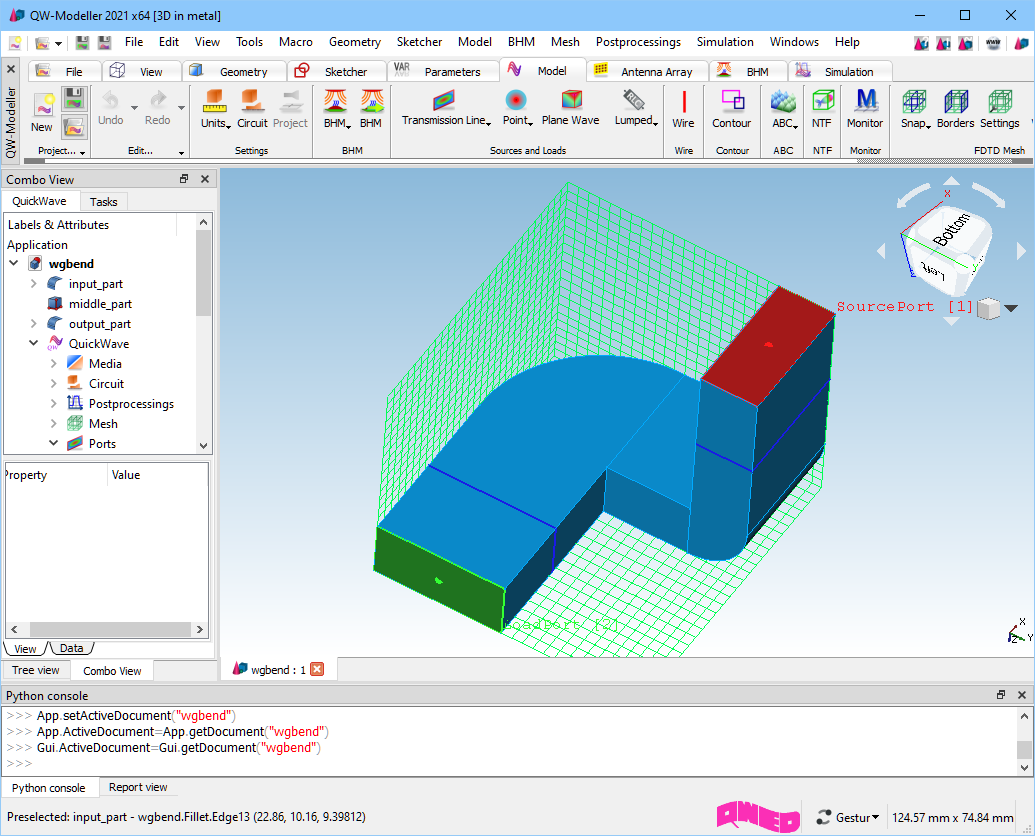

The structure is a waveguide bend with two bends, first one in E-plane and the second one in H-plane.

Geometry

The bends are made on a waveguide with the following dimensions: 22.86 mm x 10.16 mm.

Post Processing

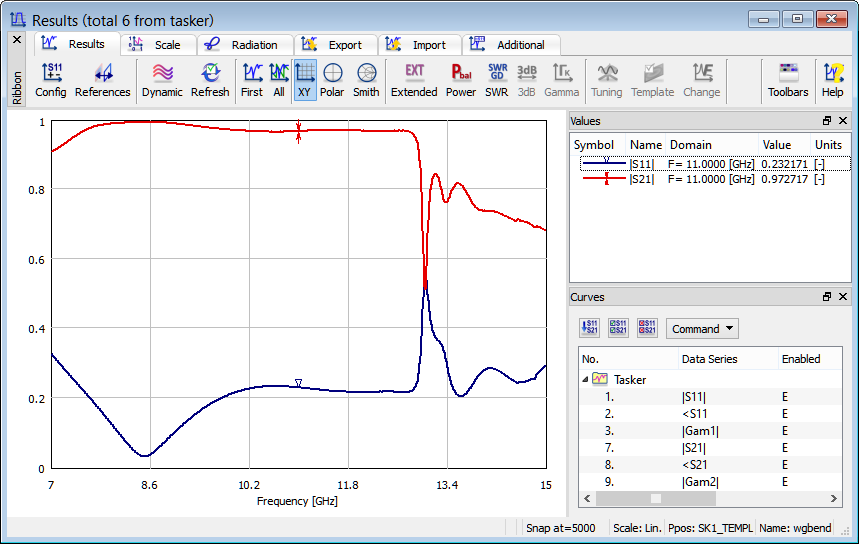

S-parameters of the waveguide bend structure in View Results window.
