button, set the variables as below.4.5 Defining post-processings for simulation
Before running the simulation we need to configure the S-parameters postprocessing, because we are interested in the filter characteristics. For that purpose we switch to the Simulation tab and in S-Parameters dialogue, available under S button, set the variables as below.

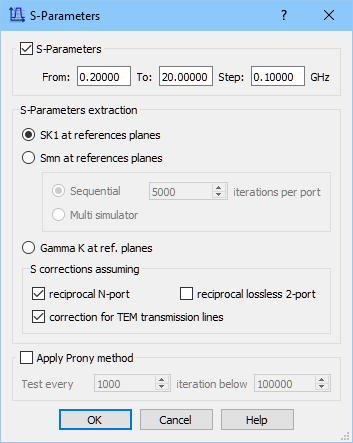

S-Parameters dialogue setting for the microstrip line filter project.
Previous step: Setting up the mesh.
Next step: Exporting the project and running the simulation.
