1.1     Ribbon

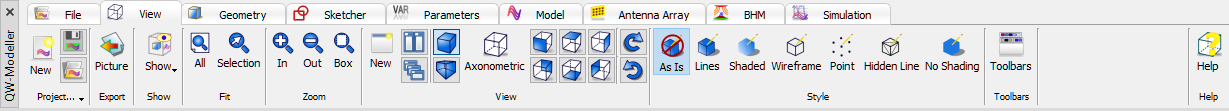

QW-Modeller Ribbon contains all commands needed for creating complete project for FDTD electromagnetic simulation with QuickWave^TM Simulator.

QW-Modeller Ribbon contains of the following tabs:

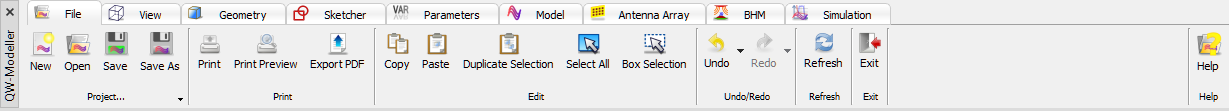

• File

• View

• Geometry

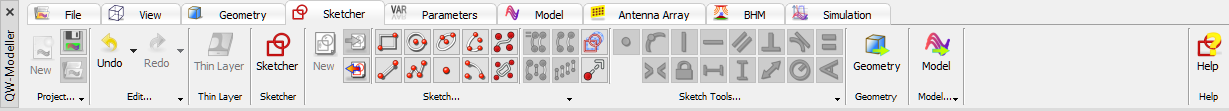

• Sketcher

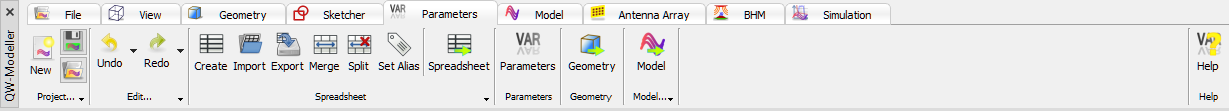

• Parameters

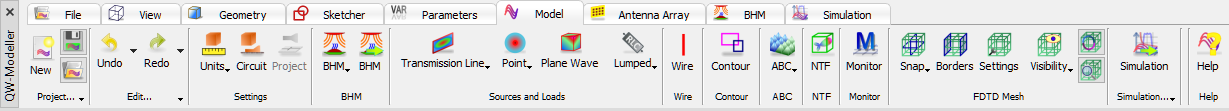

• Model

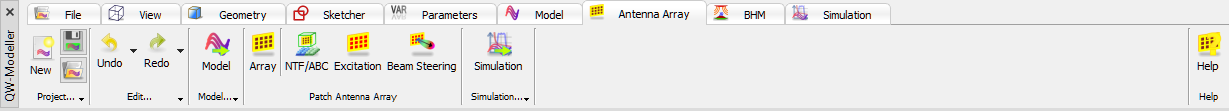

• Antenna Array

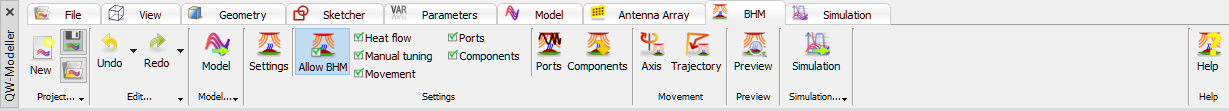

• BHM

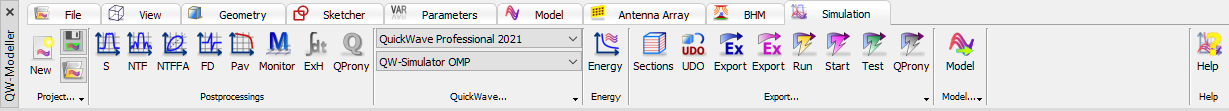

• Simulation

QW-Modeller Ribbon contains all commands needed for creating complete project for FDTD electromagnetic simulation with QuickWave^TM software for electromagnetic simulations. They are organised in a series of tabs divided in sections and subsections with grouped commands and contain the following types of buttons and controls:

 - small push button

 - big push button

 - on/off button

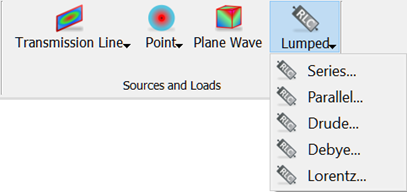

 - big push button with commands

 - combo box with choices

 - label button with commands
