4.2.6    Cutout of Two Shapes

Cutout operation will create a cutout in a walled object to fit another walled object. The medium of the resulting object will be the same as the active medium set in the document.

The examples of the resulting objects depending on the selection order:

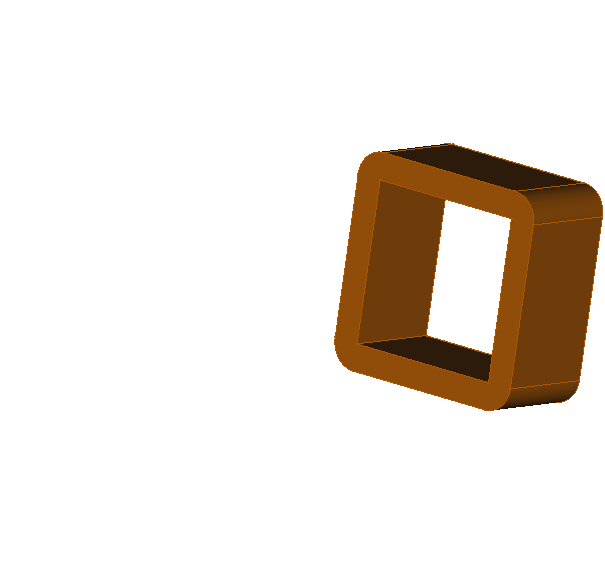

Order of selection: first Waveguide1, second Waveguide2:

   +      =

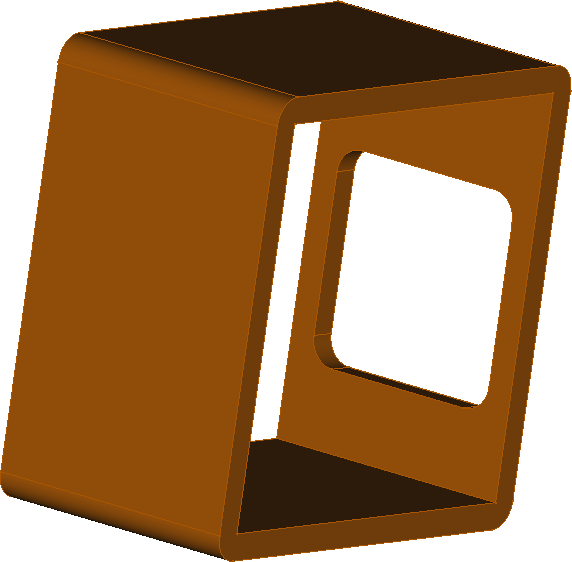

Order of selection: first Waveguide2, second Waveguide1:

   +      =
