1.6.18                Absorbing BC group

Absorbing BC group contains all absorbing boundary (MUR box, MUR walls, PML box, and PML walls) defined in the project. There is only one MUR box or PML box allowed in the project.

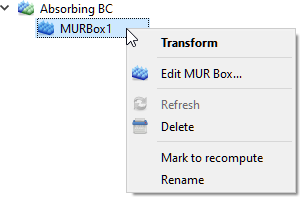

Double mouse click on the selected MUR box and the  command, available from the selected MUR box context menu, open Edit MUR Box dialogue with options for MUR box.

Double mouse click on the selected MUR wall and the  command, available from the selected MUR wall context menu, open Edit MUR Wall dialogue with options for MUR wall.

Double mouse click on the selected PML box and the  command, available from the selected PML box context menu, open Edit PML Box dialogue with options for PML box.

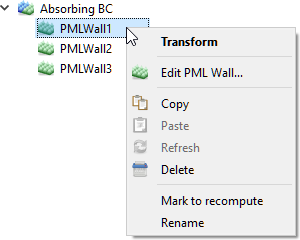

Double mouse click on the selected PML wall and the  command, available from the selected PML wall context menu, open Edit PML Wall dialogue with options for PML wall.

See Absorbing Box and Absorbing Wall chapters for more information.
