5.2     Manual frequency tuning

Manual frequency tuning can be switched on via Manual tuning option in Heating Details dialogue shown in Fig. 5.4-1. The algorithm of the BHM regime with manual frequency tuning is the same as the algorithm of the BHM regime with frequency tuning. The only difference appears in step C(see Automatic frequency tuning). In case of automatic frequency tuning the software is detecting and storing the frequency f₁ of the deepest resonance. In manual tuning a new frequency value should be set by the user.

Fig. 5.2-1 Return loss characteristic and dialogue for introducing new value of frequency.

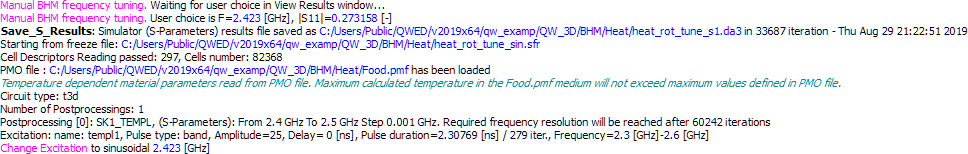

Fig. 5.2-2 Additional messages in the Simulator Log window.
