3.2    UDO Variables

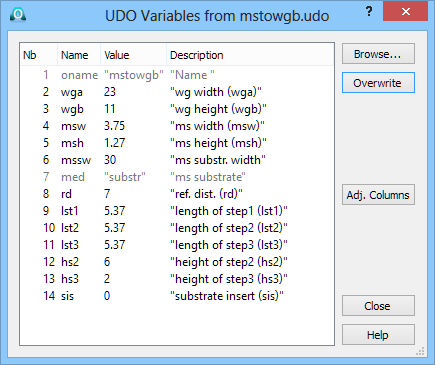

The UDO Variables dialogue can be invoked using Load UDO… button in the Variables tab of the Configure Optimiser dialogue.

The UDO Variables dialogue allows loading variables from a UDO file.

The UDO file can be chosen using Browse… button. The UDO parameters from the header of this file will be displayed in the Name column of the UDO Variables dialogue. Into the Value column, the default values of these parameters from the UDO file header will be read, unless the projectname.ud3 file exists in the project directory, and the name of a particular variable is found in this file, in which case this value prevails. Pressing Overwrite button moves these variables to the Optimiser Variables list. The path to the loaded UDO file will be further remembered by the software and shown in the UDO Path line in the Variables tab of the Configure Optimiser dialogue.
