14.2Rectangular dielectric resonator of periodic structure

This example is available in .../QW-3D/Standard/Resonators/Qcuboid/Q_cuboid_S_3DP.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

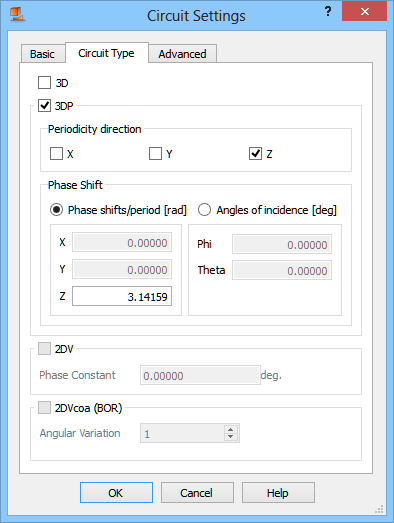

Rectangular 3DP dielectric resonator with pulse of spectrum excitation.

Geometry

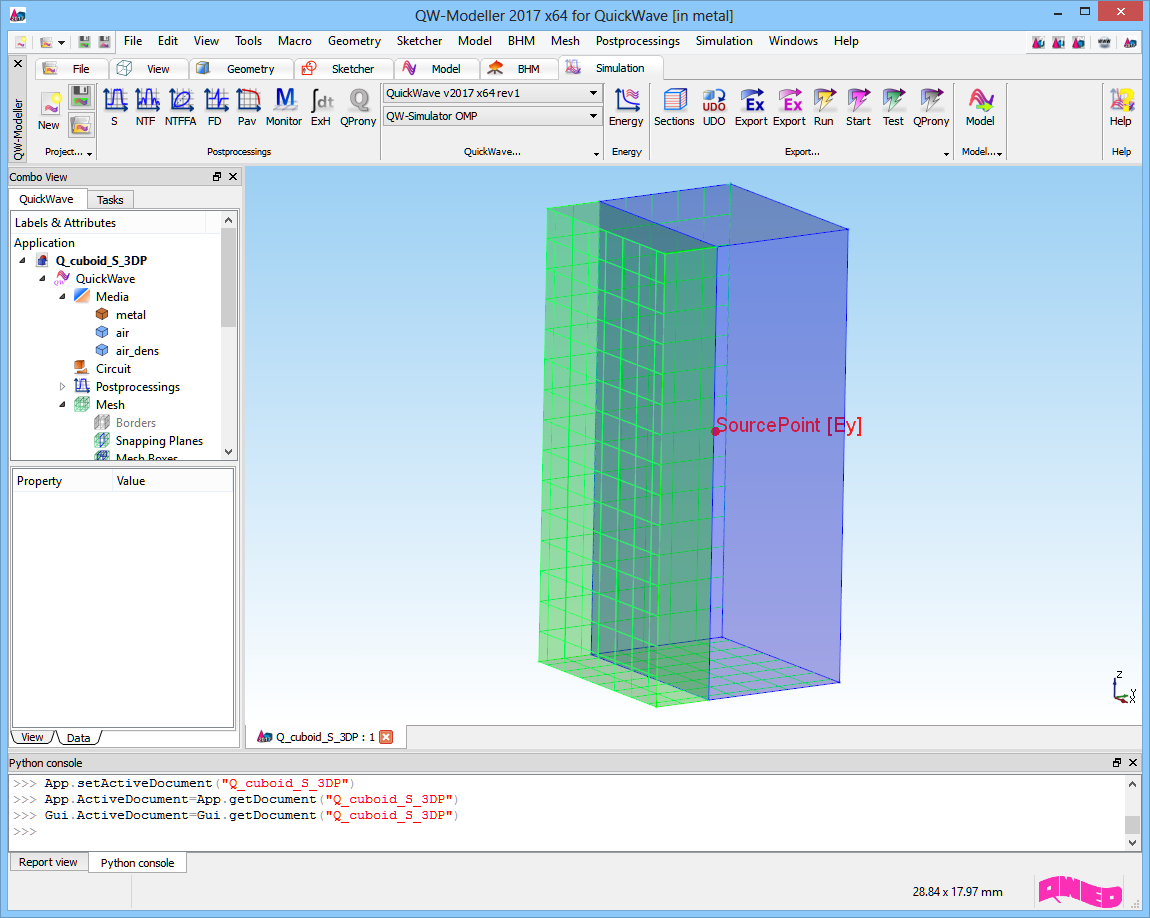

The resonator's inside dimensions are 7 mm, 5 mm, 15 mm in X, Y, Z directions respectively. The rectangular dielectric object’s dimensions are 7 mm, 2 mm, 15 mm in X, Y, Z directions respectively.

Post Processing

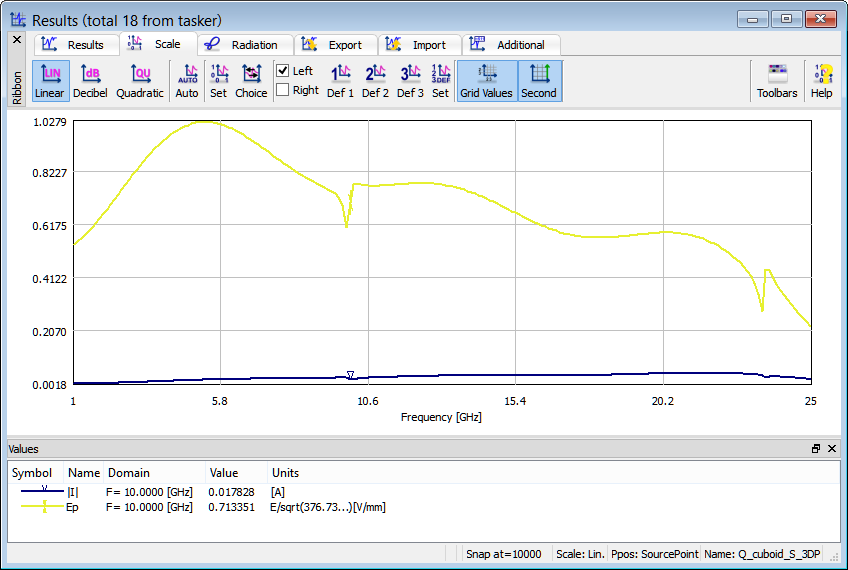

FD Probing parameters calculations in the band from 1 GHz to 25 GHz with step 0.12 GHz.
