22   Metamaterial cylinder in parallel plate line

This example is available in .../QW-3D/Standard/Materials/Dispersive/parplat_deb3_xy_meta.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Cylinder made of Debye three pole metamaterial placed in parallel plate line.

Geometry

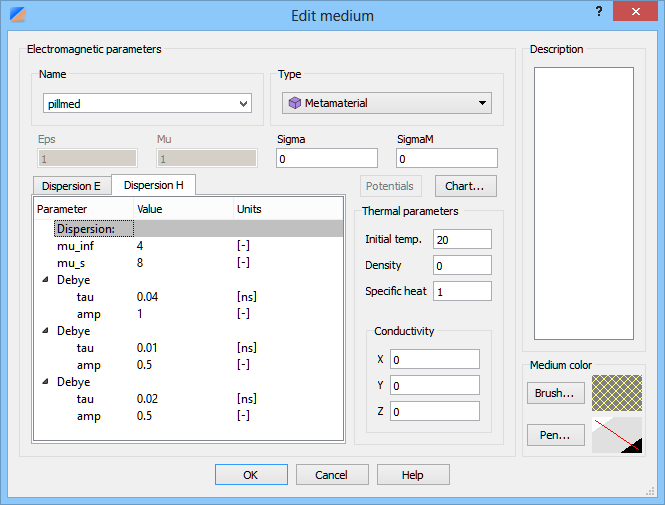

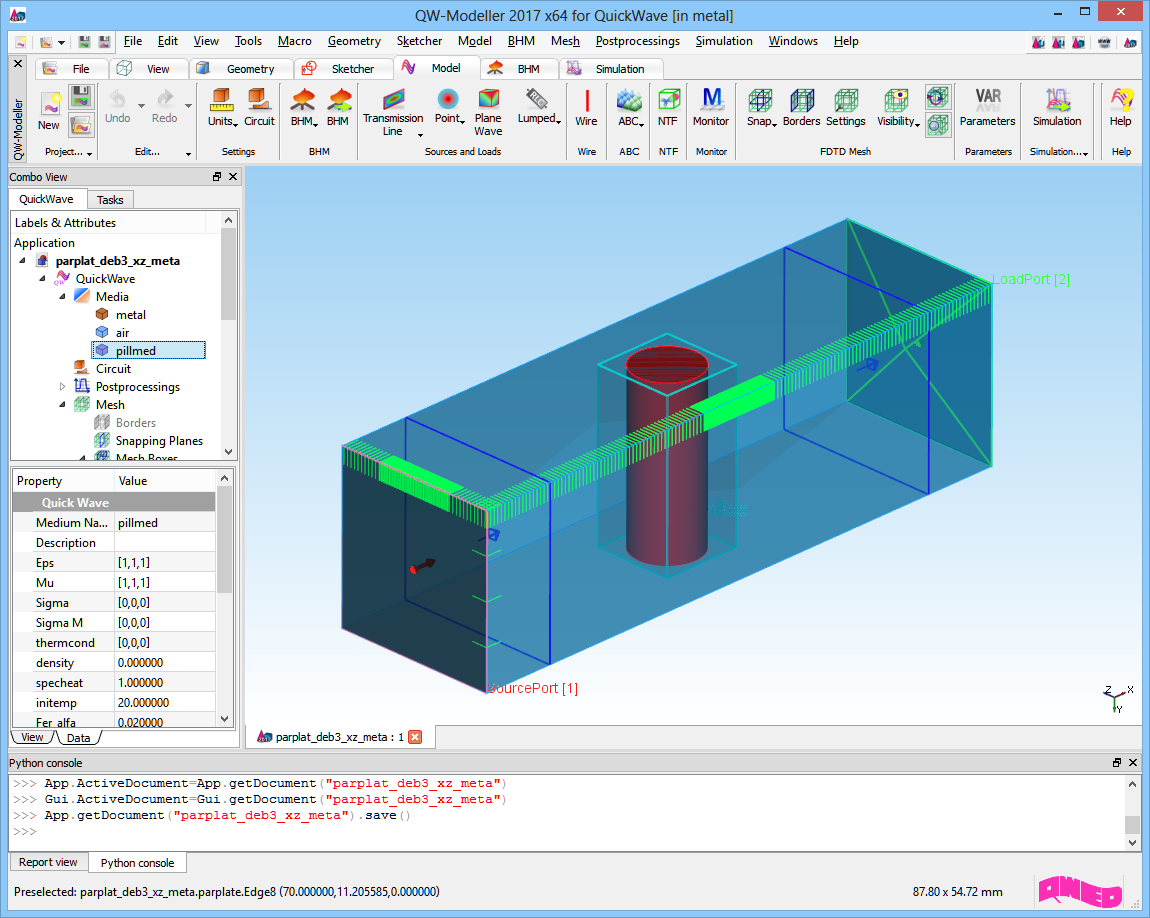

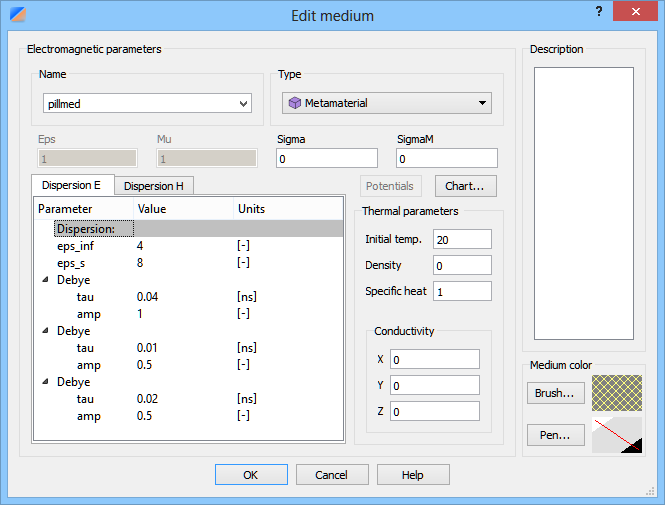

Air filled parallel plate line dimensions are 70 mm, 20 mm, and 20 mm in X, Y, and Z directions respectively. The diameter of cylinder made of metamaterial is 8 mm and its width in Y direction is 20 mm. The cylinder’s material is three pole Debye metamaterial with parameters as shown below.

Post Processing

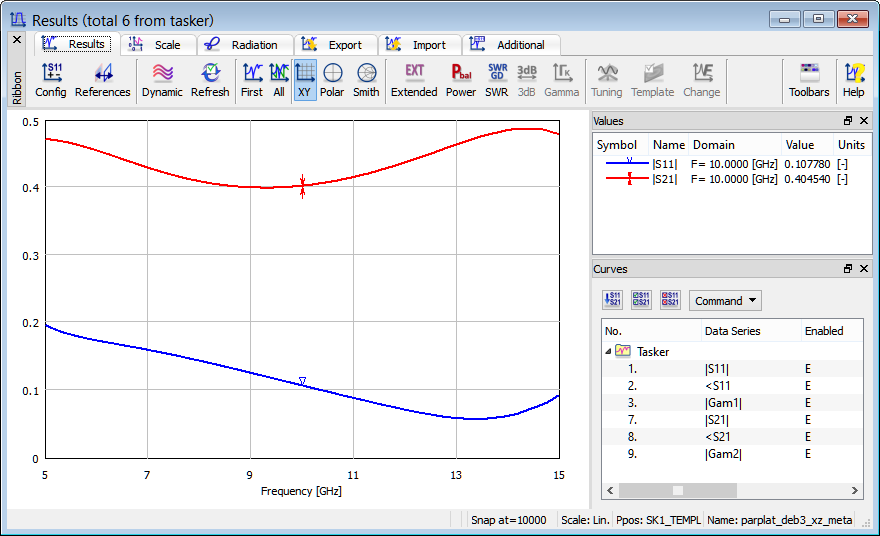

S-parameters results for the parallel plate with cylinder made of three pole Debye metamaterial.
