1.6.11 Mesh Boxes group

Mesh Boxes group contains all mesh boxes defined in the project.

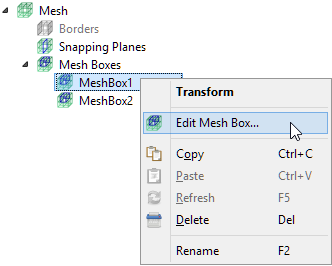

Double mouse click on the selected mesh box and the  command, available from the selected mesh box context menu, open Edit Mesh Box dialogue with options for mesh box.

See also Mesh Box chapter for more information.
