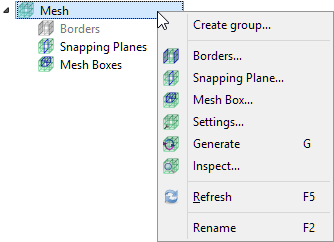

1.6.9      Mesh group

Borders group is grey by default, which means that visual representation of the type of boundary conditions (PEC or PMC) is off. Double mouse click on the Borders group opens Boundary Conditions dialogue with options for the project boundaries.

See also FDTD Mesh chapter for more information.
