4.2.5      Embedding of Two Shapes

Embed operation will embed a walled object into another walled object. The medium of the resulting object will be the same as the active medium set in the document.

The examples of the resulting objects depending on the selection order:

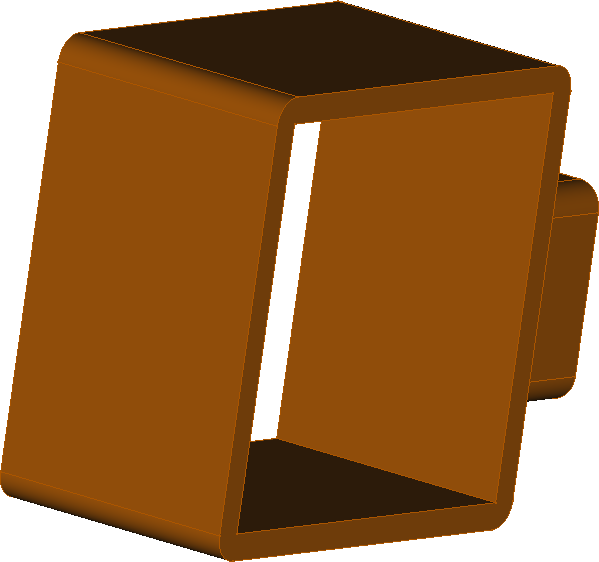

Order of selection: first Waveguide1, second Waveguide2:

   +      =

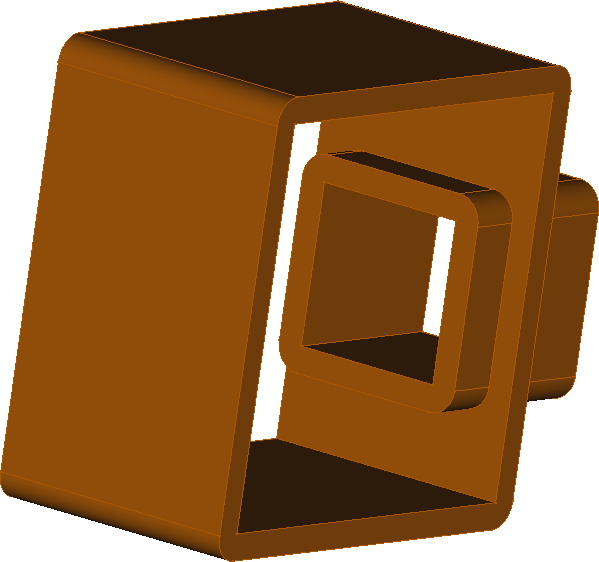

Order of selection: first Waveguide2, second Waveguide1:

   +      =
