7.5      Power Available

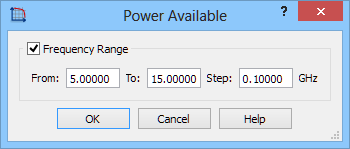

The Pav button  in the Simulation tab and Postprocessings->Power Available... command from main menu invoke Power Available dialogue with settings for Power Available post-processing.

Power Available post-processing invokes calculations of the Fourier transform of Excitation Waveform of all sources. The result will be a square root of time-maximum spectral power density at each frequency point; when displayed in square scale, it will be time-maximum spectral power density in Watt.

For a detailed discussion regarding Power Available post-processing refer to Power Available from the source and Energy available from the source.

The Power Available results can be observed in Results window in QW-Simulator.

Python code

The python code, which can be useful when creating project scripts, generated by Power Available dialogue for default parameters:

App.ActiveDocument.QW_PostprocessingPav.Active = True

App.ActiveDocument.QW_PostprocessingPav.From = 5.00000

App.ActiveDocument.QW_PostprocessingPav.To = 15.00000

App.ActiveDocument.QW_PostprocessingPav.Step = 0.10000
