33 Step in a coaxial line

This example is available in .../QW-3D/Standard/Coax/Verstep/verstep.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Step in a coaxial line in an outer diameter.

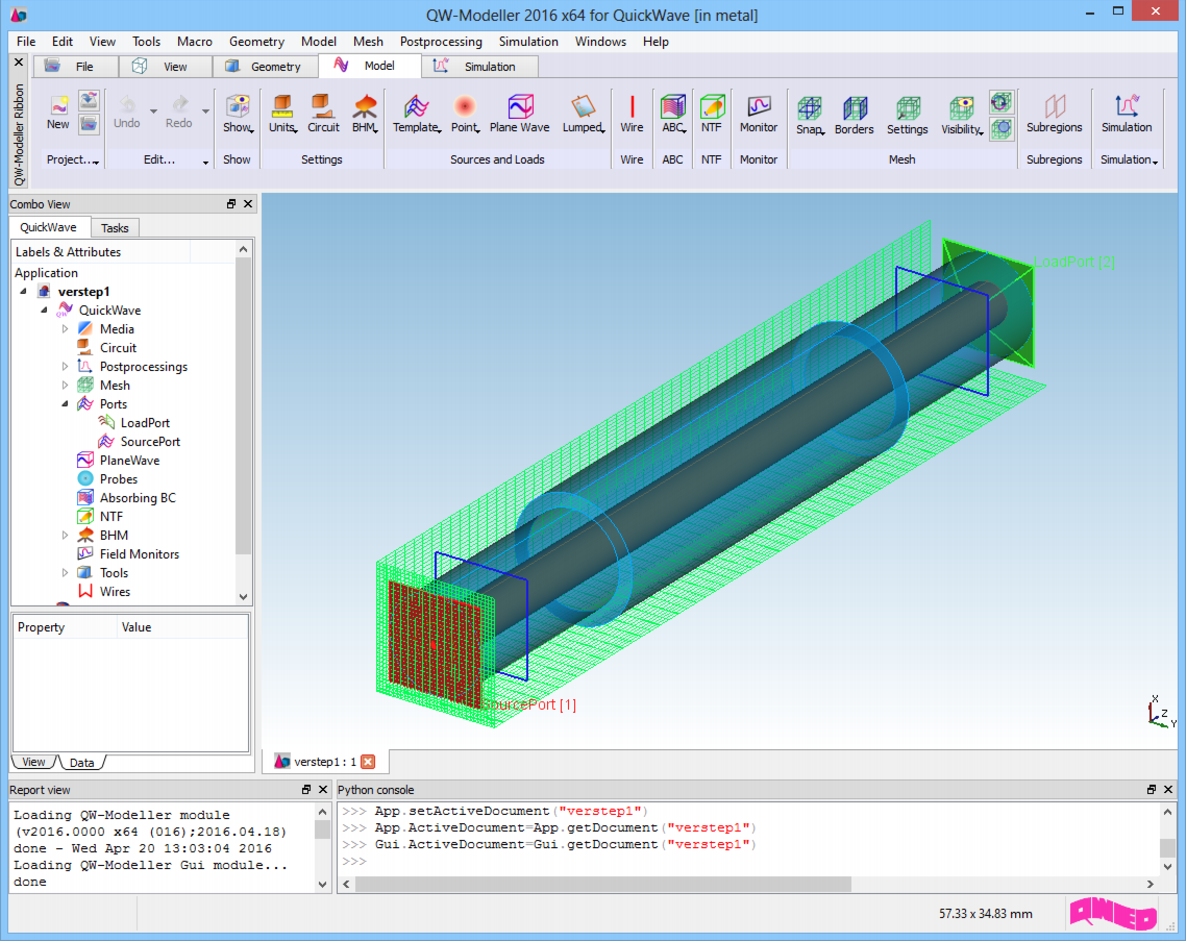

Geometry

An air-filled line has the inner diameter 3.04 mm and the outer diameters of 7 mm and 9 mm, respectively. Input/output lines are 15 mm long and the middle segment is 30 mm long.

Post Processing

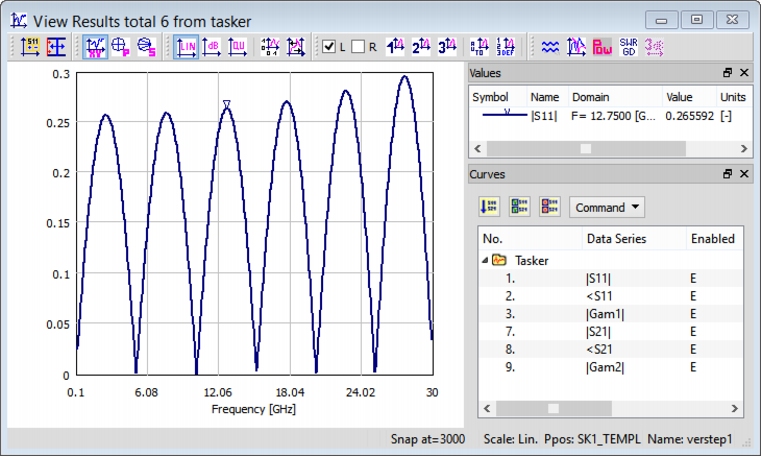

Reflection coefficient of the coaxial line with a step in outer diameter.
