button. The following dialogue will appear.2.6.6 Setting up the mesh

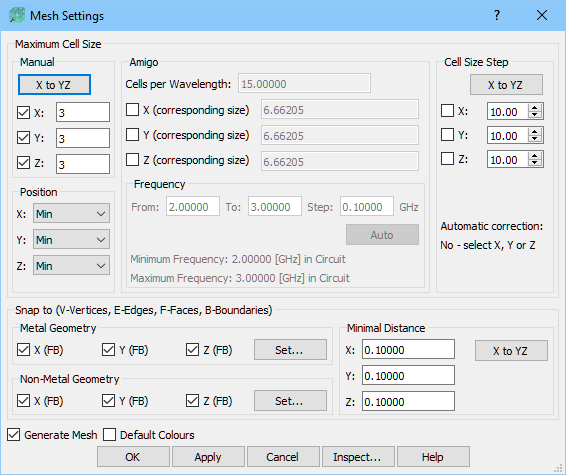

Having the structure’s geometry and the ports defined we can now set up the mesh. To do that, in Model tab we press the Settings button. The following dialogue will appear.
We set 3mm cell sizes in X, Y and Z direction. The meshing will be enforced in the entire project space.
Previous step: Setting boundary conditions.
Next step: Exporting the project and running the simulation.
