4.4.2    Sketcher Operations

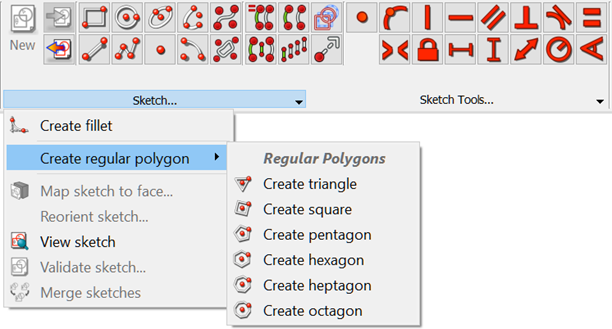

 - creates‎ a new sketch on a selected face or plane. If no face is selected while this tool is executed the user is prompted to select a plane from a Choose orientation dialogue.

 - leaves the sketch editing mode.

 - edits the selected sketch.

 - maps a sketch to the previously selected face of a solid.

 - allows to change the position of a sketch.

 - sets the model view perpendicular to the sketch plane.

 - allows to check if there are in the tolerance of different points and to match them.

 - merges two or more sketches.



See also General Overview, Sketcher Geometries, Sketcher Constraints, Sketch Tools and Good Practises chapters for more information.
