3.6     Add Objective Name

The Add Objective Name dialogue can be invoked using More… button in the Add Objective or Edit Objective dialogue.

The Add Objective Name dialogue allows choosing the additional objectives that are not included in the default Objective list in the Add Objective or Edit Objective dialogue.

For S-Parameters Objective the following additional objective names can be chosen:

The list of objective names can be adjusted to the user needs by changing the number of ports and checking Extended Results option.

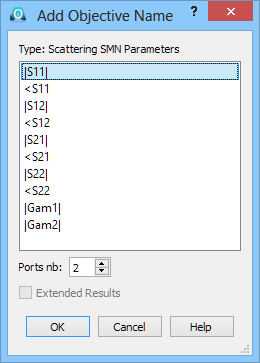

For S-Parameters SMN Objective the following additional objective names can be chosen:

The list of objective names can be adjusted to the user needs by changing the number of ports.

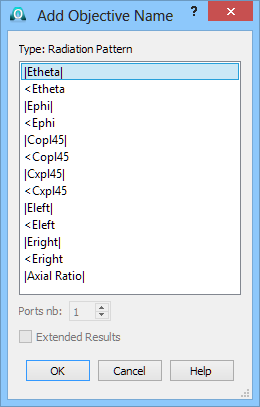

For Radiation Pattern Objective the following additional objective names can be chosen:

It offers a full choice of results available in the NTF post-processing. Note that the co-polarisation (Copl) and cross-polarisation (Cxpl) patterns may only be chosen for V2D projects.

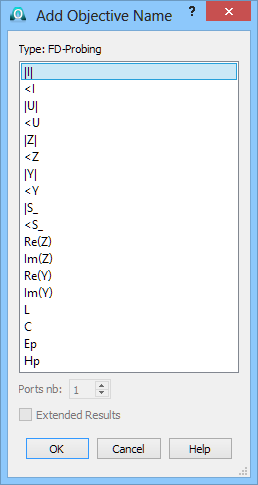

For FD-Probing Objective the following additional objective names can be chosen:

It offers a full choice of results available in the FD-Probing post-processing.
