12.5.25                Save File Options

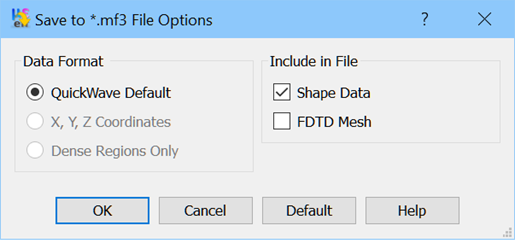

The Options button from Export Settings dialogue invokes Save to *.mf3 File Options dialogue for setting options for saving the effective media parameters to *.mf3 file.

The QuickWave Default data format is the QuickWave format and file saved with this option can be viewed in 2D/3D Fields Distribution window in QW-Simulator.

If Shape Data option is checked, the shape of the structure will be saved in the *.mf3 file. In the other case the path to the appropriate *.sh3 shape file will be included in the *.mf3 file.

If the FDTD Mesh option is checked, the information about FDTD mesh will be saved in the *.mf3 file.
