15.3.11            Plane Instantaneous Settings

The Plane Instantaneous Settings dialogue can be invoked using Instant. Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

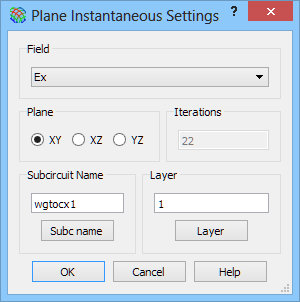

The Plane Instantaneous Settings dialogue allows choosing additional settings for saving plane instantaneous with Save Plane Instantaneous command.

The Field component, Plane and Layer must be set.

The Layer button invoke Set Layer dialogue for setting the layer position expressed in the FDTD cells.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
