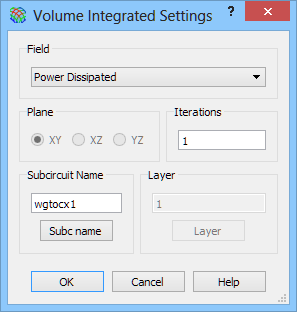

15.3.15            Volume Integrated Settings

The Volume Integrated Settings dialogue can be invoked using Integrated Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The Volume Integrated Settings dialogue allows choosing additional settings for saving volume integrated with Save Volume Integrated and Save Full Volume Integrated commands.

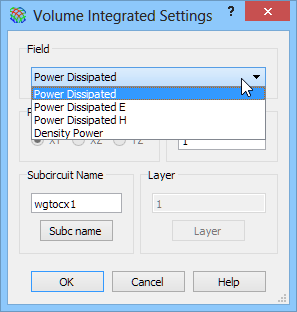

The Field option contains the following choices of components:

·         Power Dissipated - power dissipated

·         Power Dissipated E - power dissipated in electric losses

·         Power Dissipated H - power dissipated in magnetic losses

·         Density Power – power dissipated density

Also the number of Iterations for integration should be set.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
