15.3.22            Save Enthalpy (ReIm, Media)

The Save Enthalpy (ReIm, Media) dialogue can be invoked using Enthalpy Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The Save Enthalpy (ReIm, Media) dialogue allows choosing additional settings for saving integral of power dissipated (enthalpy) results with Save Enthalpy ReIm Media command.

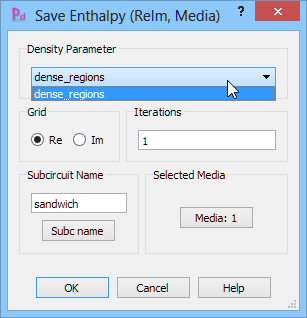

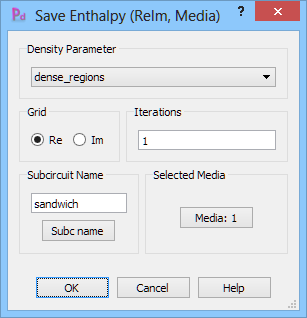

dialog_saveEnthalpyReImMedia      dialog_saveEnthalpyReImMedia2

The Density Parameter allows controlling regions of integral of power dissipated calculations:

ยท         dense_regions - reduces the regions of integration to regions of non-zero material density



The integration can be performed on real (Re) or imaginary (Im) FDTD grid (in the case of periodic 3DP circuits).

The Media button opens Dense Media dialogue for selecting dense media that will be used in the integration.

Also the number of Iterations for integration should be set.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
