15.3.5                Contour Settings

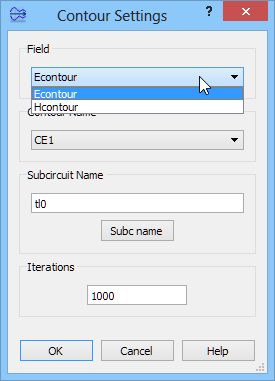

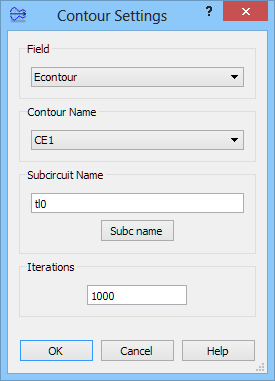

The Contour Settings dialogue can be invoked using Contour Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The Contour Settings dialogue allows choosing contour and setting parameters for saving the results with Save Fields Along Contour command.

The Field may be electric or magnetic field along contour of name selected from the Contour Name list. For envelope construction, the number of Iterations must be greater than 1.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
