15.3.9                ExH Time Integral Settings

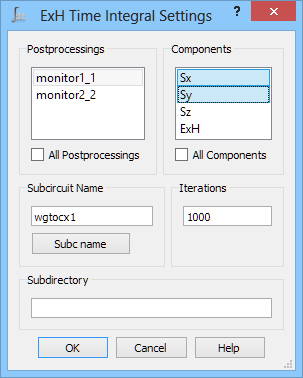

The ExH Time Integral Settings dialogue can be invoked using ExH Time Integral Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The ExH Time Integral Settings dialogue allows choosing additional settings for saving time integral results with Save ExH Time Integral Results and Save Calculated ExH Time Integral Results commands.

The options allow choosing selected Components or All Components available for All Posprocessings or in selected Field Monitor post-processing(s). The number of Iterations is the integration period. The Subdirectory contains the name for subdirectory where files will be saved.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
