15.4 Simultaneous subtasks mode of tasker

Subtasks which have to collect information for a particular number of iterations, like:

Save_Plane_Envelope

Save_Line_Envelope

Save_Fields_Along_Contour

Save_Time_Probes

Save_Volume_Envelope

Save_Volume_Integrated

Save_Pdiss_Energy_QF

Save_Calculated_ ExH_Time_Integral_Results

Calculate_With_Prony

can work simultaneously. There is possible to e.g. save envelope for different components at the same time. This mode is not automatic and can be switched on by placing Use_Concurrent_Tasks command in Breakpoints or in the tasker file.

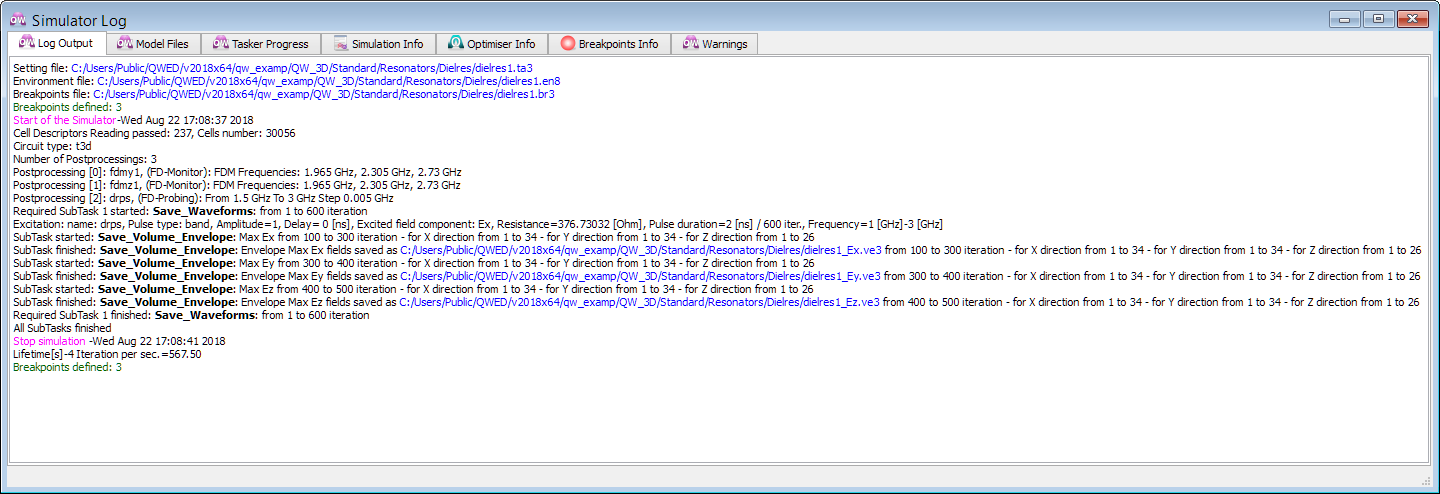

Log Output for three Save_Volume_Envelope tasks in standard sequential subtasks mode.

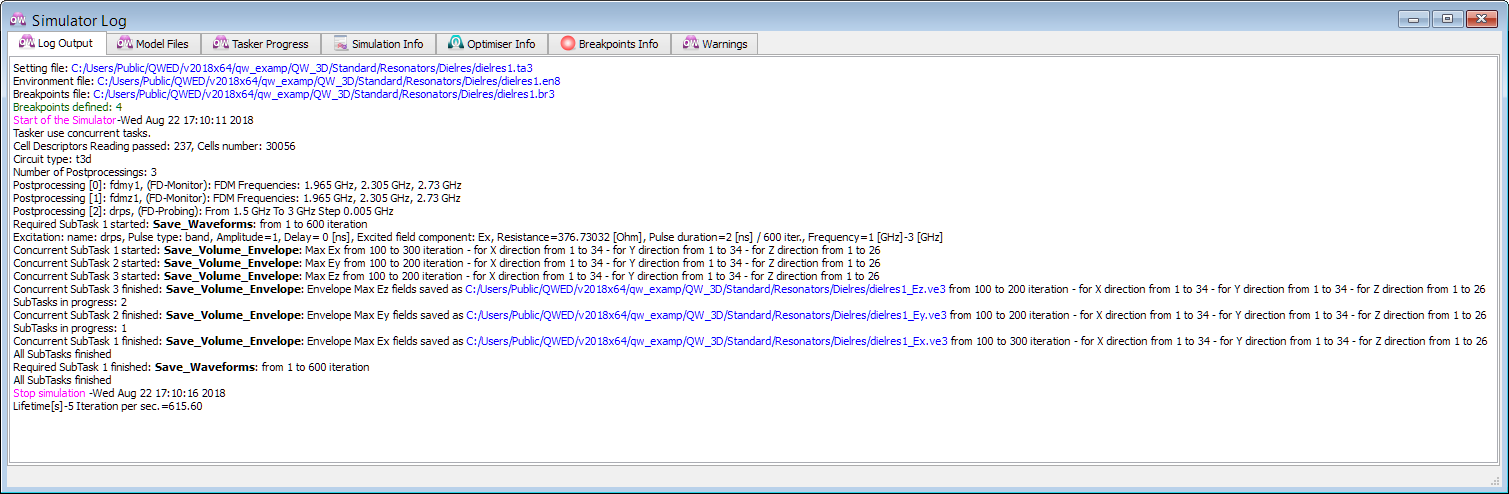

Log Output for three Save_Volume_Envelope tasks in standard simultaneous subtasks mode.
