2.8.2   Full S Matrix results

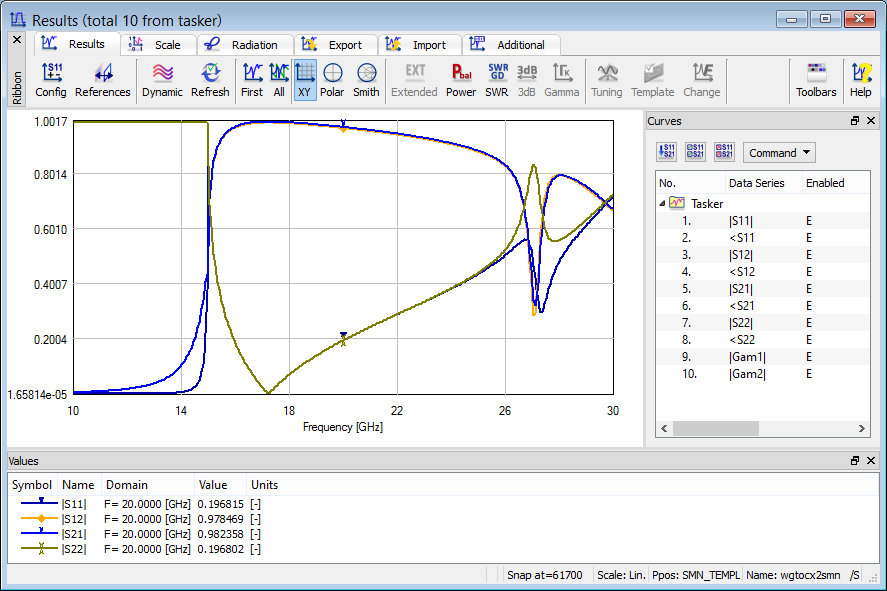

Full S-Matrix calculations is available with Smn at reference planes option. Activating this option means that the software will calculate the entire S-matrix after consecutive excitations from Port 1 (we obtain S11, S21 … SN1), Port 2 (we obtain S12, S22 … SN2) etc. Next, matrix operations are performed to correct mutually the results obtained with excitation from each port, and display the final result.

For detailed discussion concerning Smn at reference planes regime of S-Parameters post-processing refer to S-Parameters.

The Values pane contains information about visible curves such as name, domain, and value under active cursor and other parameters in separated columns, which can be chosen in Select Column dialogue.
