4.11.13                Refresh Settings

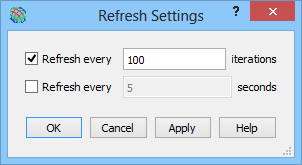

The button_display_refresh button in Display tab and Refresh Settings… command from main menu or context menu invoke Refresh Settings dialogue for specifying how frequently the display should be refreshed, if dynamic mode is off.

dialog_refresh

The refreshing period can be defined as a number of FDTD iterations or in seconds.
