1.6.12 Ports group

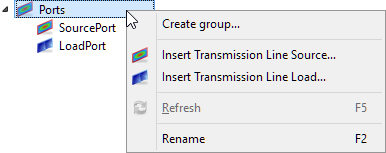

Ports group contains all transmission line ports (sources and loads) defined in the project.

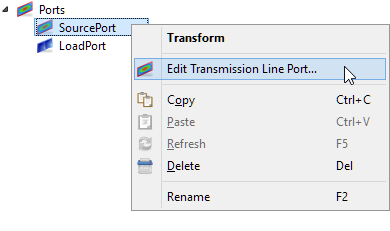

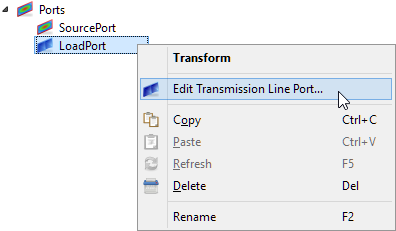

Double mouse click on the selected transmission line port and the  or  command, available from the selected transmission line port context menu, open Edit Transmission Line Port dialogue with options for transmission line port.

See also Transmission Line Port chapter for more information.
