4.3.6      Sweep

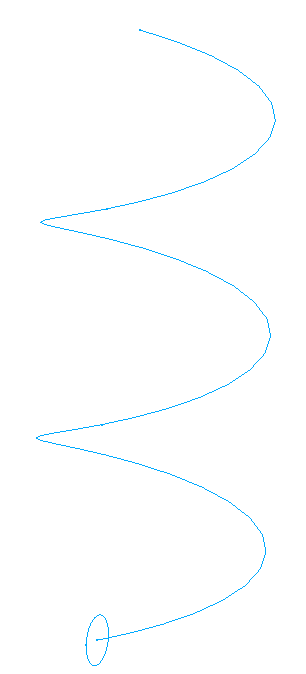

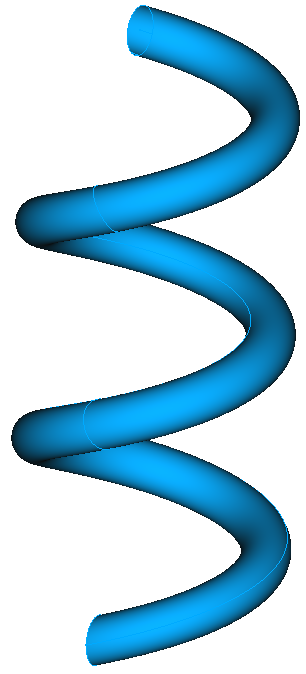

The sweep tool is used to create a face, shell or a solid shape from one or more profiles, projected along a path.

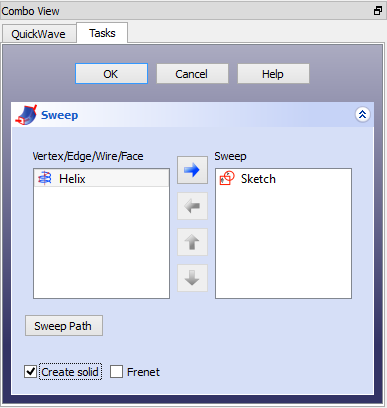

After clicking  under  button placed in the QW-Modeller Ribbon's Geometry tab, an additional dialogue will appear in the Task Panel. This dialogue allows choosing shapes and modifying various sweep parameters.
