4.3.7      Fillet

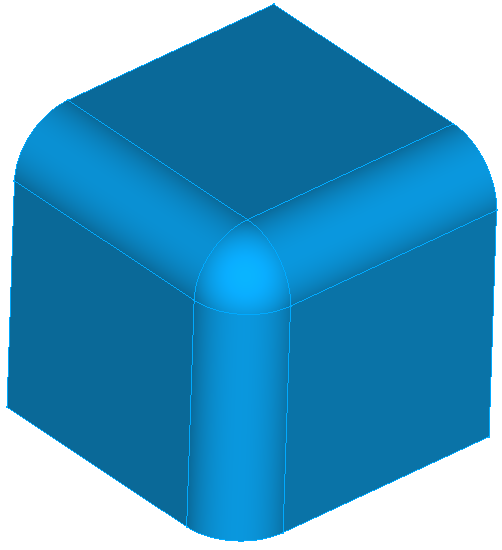

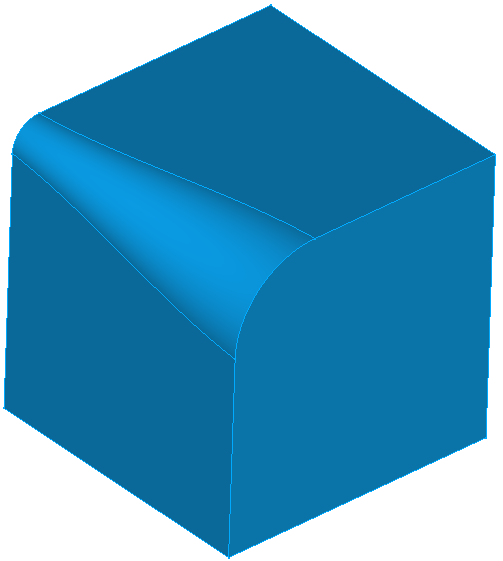

This tool creates a fillet (round) on the selected edge(s) of an object.

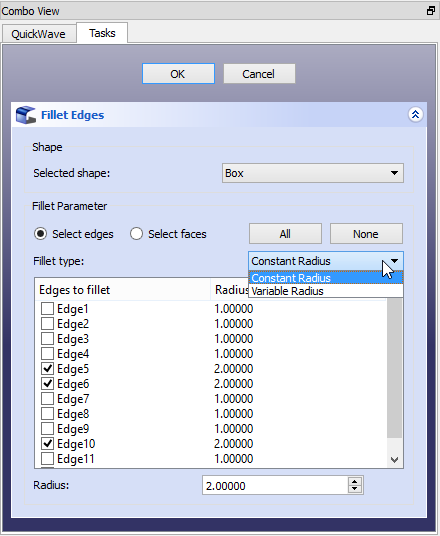

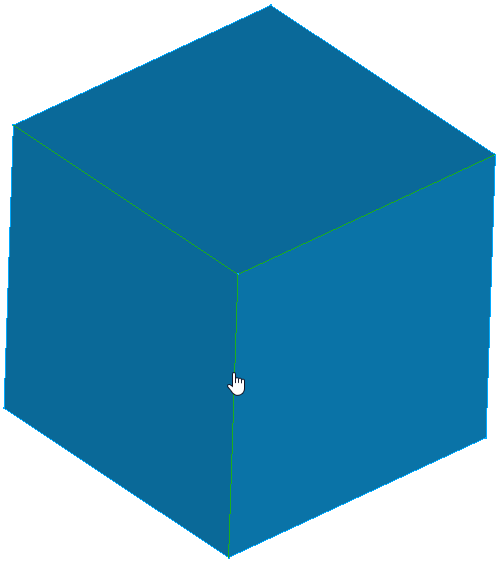

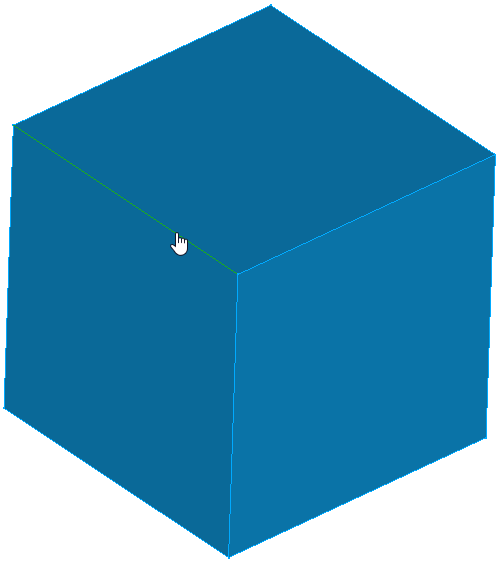

After clicking  under  button placed in the QW-Modeller Ribbon's Geometry tab, an additional dialogue will appear in the Task Panel. This dialogue allows choosing shape, edge(s) and modifying various fillet parameters.
