8.3      Variable Heating Steps

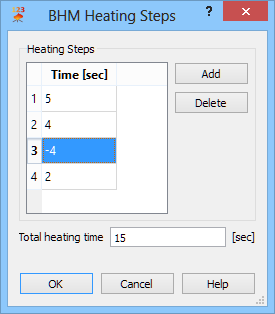

The BHM Heating Steps dialogue can be invoked from Heating Details dialogue and it allows defining different heating time for each BHM step.

The Add button appends one heating step to the list. If this is the first step, the Time default value will be 5 and for other steps, the default value will be taken from the previous step.

The Delete button removes selected heating steps from the list.

The Total heating time is the sum of all defined Heating Steps times and the number of BHM steps is the number of all defined Heating Steps.

Please note that when using it together with BHM Rotation Axis, the negative value of heating time can be used for changing the rotation direction for that particular BHM step and does not influence the BHM process (the absolute value is taken).
