QW-AddIn for Autodesk® Inventor® Software
Previous: QW-GPUSim
Next: FD-Monitor 3D
An AddIn for Autodesk® Inventor® Software allows preparing a complete project
for the QuickWave Simulator.
QuickWave Analysis AddIn.
user-friendly CAD environment for complex geometry definition
easy-to-learn set of tools
automatic QuickWave-3D simulation models generation
QuickWave-3D user interface
EM sources, field monitors, boundary conditions
postprocessing tasks: S-parameters, antenna pattern, power available
material parameters
automatic mesh generation
automatic geometry conversion

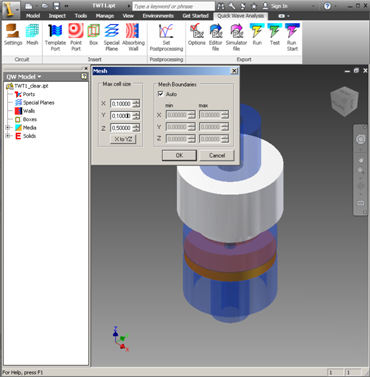

QuickWave Analysis AddIn - Mesh settings dialogue.
QuickWave Analysis AddIn - Add New Medium dialogue.
QuickWave Analysis AddIn - Port settings dialogue.
QuickWave Analysis AddIn - Postprocessings dialogue.
QuickWave Analysis AddIn - export progress.
