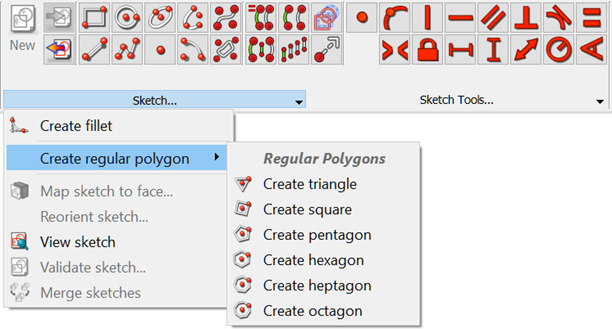

4.4.2 Sketcher Operations
- creates‎ a new sketch on a selected face or plane. If no face is selected while this tool is executed the user is prompted to select a plane from a Choose orientation dialogue.
- leaves the sketch editing mode.
- edits the selected sketch.
- maps a sketch to the previously selected face of a solid.
- allows to change the position of a sketch.
- sets the model view perpendicular to the sketch plane.
- allows to check if there are in the tolerance of different points and to match them.
- merges two or more sketches.
See also General Overview, Sketcher Geometries, Sketcher Constraints, Sketch Tools and Good Practises chapters for more information.
