4.4.3    Sketcher Geometries

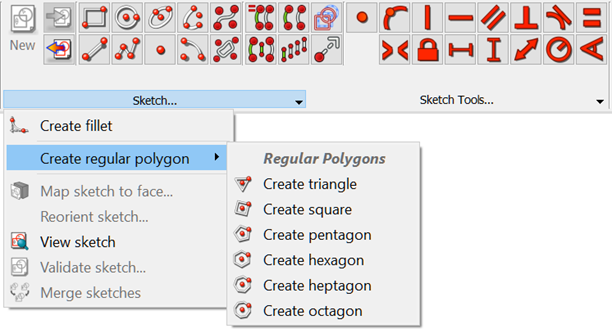

Various geometries can be drawn using the following options:

 - Rectangle: Draws a rectangle from 2 opposite points.

 - Circle: Draws a circle from centre and radius.

 - Ellipse by center: Draws an ellipse by centre point, major radius point and minor radius point.

 - Arc of ellipse: Draws an arc of ellipse by centre point, major radius point, starting point and ending point.

 - Line by 2 point: Draws a line segment from 2 points.

 - Polyline (multiple-point line): Draws a line made of multiple line segments. Pressing the M key while drawing a Polyline toggles between the different polyline modes.

 - Point: Draws a point.

 - Arc: Draws an arc segment from centre, radius, start angle and end angle.

 - B-spline: create B-spline via control points.

 - Periodic B-spline: create periodic B-spline via control points.

 - Clone: create a clone of the geometry with respect to the last selected point.

 - Simple Copy: create a simple copy of the geometry with respect to the last selected point.

 - Symmetric Geometry: create symmetric geometry with respect to the last selected line or point.

 - Rectangular array: create a rectangular array pattern of the geometry with respect to the last selected point.

 - Copy geometry from other sketch.

 - Extend an edge with respect to the picked position.

 - Triangle: draws a regular triangle inscribed in a construction geometry circle.

 - Square: draws a regular square inscribed in a construction geometry circle.

 - Pentagon: draws a regular pentagon inscribed in a construction geometry circle.

 - Hexagon: draws a regular hexagon inscribed in a construction geometry circle.

 - Heptagon: draws a regular heptagon inscribed in a construction geometry circle.

 - Octagon: draws a regular octagon inscribed in a construction geometry circle.

 - Fillet: makes a fillet between two lines joined at one point. Select both lines or click on the corner point, then activate the tool.

See also General Overview, Sketcher Operations, Sketcher Constraints, Sketch Tools and Good Practises chapters for more information.
