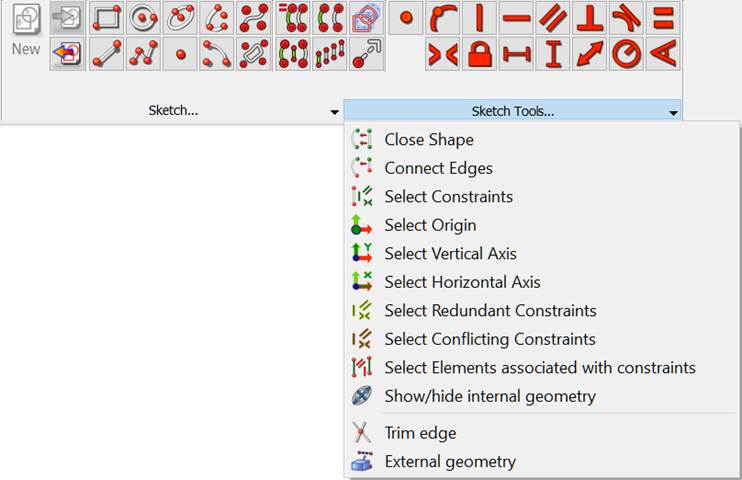

4.4.5    Sketch Tools

 - produce closed shape by Link end point of element with next elements' starting point.

 - link end point of element with next elements' starting point.

 - select the constraints associated to the selected elements.

 - select the origin point.

 - select the vertical axis.

 - select the horizontal axis.

 - select redundant constraints.

 - select conflicting constraints.

 - select Elements associated with constraints.

 - show all internal geometry / hide unused internal geometry.

 - trim an edge with respect to the picked position.

 - create an edge linked to an external geometry.

See also General Overview, Sketcher Operations, Sketcher Geometries, Sketcher Constraints and Good Practises chapters for more information.
