3.5.6   Collect Data for Grid Search

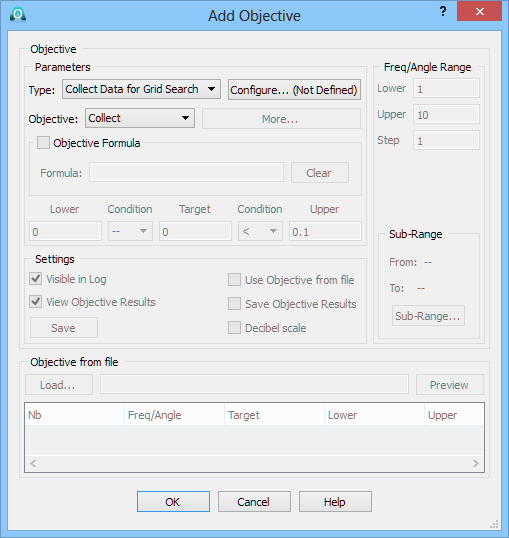

Collect Data for Grid Search objective allows saving a set of images with various simulation results. Results images are saved in an automatic way in each step of Grid Search.

The simulation results that contain the required objective and which need to be saved by the QW-Simulator are obtained using breakpoints mechanism. The Configure… button invokes Collect Data Windows dialogue for defining a set of windows with simulation results.

See Add or Edit Objective chapter for more information.

See Using Collect Data for Grid Search Objective chapter for more information about running Grid Search (Parameters Sweep) with Collect Data objective.
