12.3 LC display

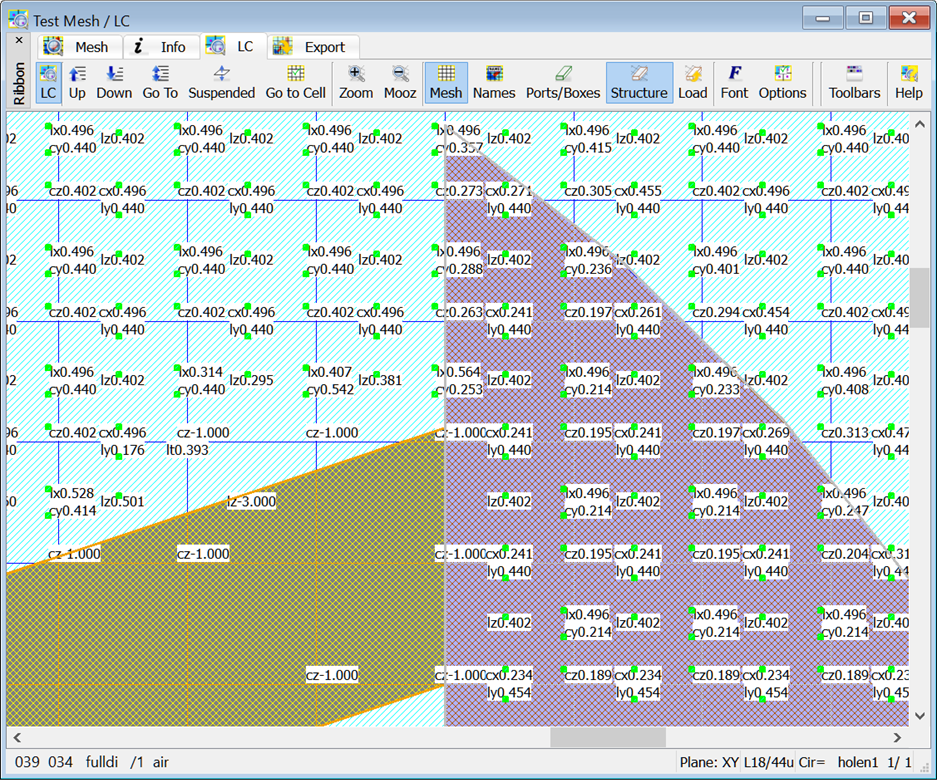

The LC display is the advanced mode of Test Mesh window. It shows the effective FDTD mesh grid, as in the Mesh display, and additionally shows the coefficients used in FDTD simulation.

Obraz zawierający tekst Opis wygenerowany automatycznie



The LC display is an advanced feature of QW-Simulator, the users interested in using it are advised to refer to Conformal FDTD algorithm parameters for more details.



All operations in the LC display are the same as in the Mesh display.
