15.3.16            Volume Limit

The Volume Limit dialogue can be invoked using Volume Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

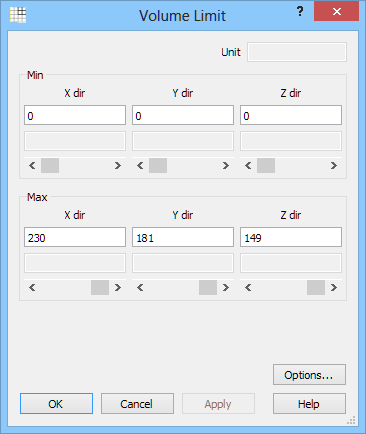

The Volume Limit dialogue allows defining a sub-volume of the computational domain that will saved with Save Volume Envelope, Save Volume Instantaneous and Save Volume Integrated commands.

It allows limiting the area of the computational domain in all three dimensions. The limits are specified as cell indexes of the lower and upper bound of the computational sub-domain.

The Options button invokes Save to File Options dialogue for setting options for saving the fields to *.vi3 or *.ve3 file.
