15.3.17            Save to File Options

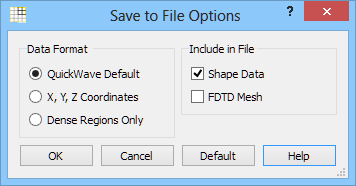

The Save to File Options dialogue can be invoked using Options… button in the Volume Limit dialogue.

The QuickWave Default data format is the QuickWave format and file saved with this option can be viewed in 2D/3D Fields Distribution window in QW-Simulator.

If Shape Data option is checked, the shape of the structure will be saved in the *.vi3 or *.ve3 file. In the other case the path to the appropriate *.sh3 shape file will be included in the *.vi3 or *.ve3 file.

If the FDTD Mesh option is checked, the information about FDTD mesh will be saved in the *.vi3 or *.ve3 file.
