3.6.14                    Display Options

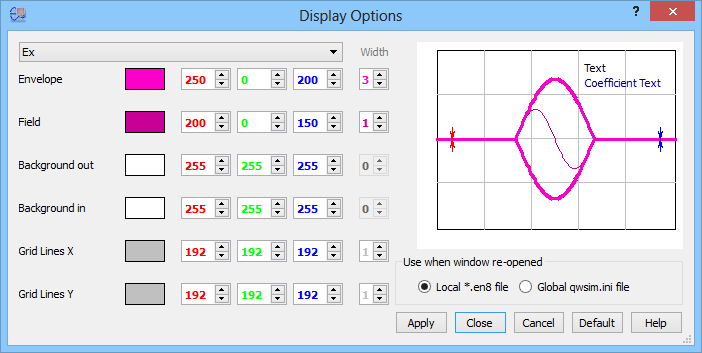

The  button in Display tab and Preferences… command from main menu or context menu invoke Display Options dialogue for setting display options.

The main list contains the following positions:

·       From Ex to Energy Total are used to describe the display settings for selected component.

·       Text is used to describe text colour displayed in the Markers Pane.

·       Coefficient Text is used to describe text colour displayed in the Markers Pane and S11, Attn. or TDR functions are on.

·       Cursor1 and Cursor2 are used to describe cursor attributes, such as colour and shape (triangle, filled triangle, arrow, double arrow, pin etc.).

·       All E-Fields is used to describe the colour for electric field components.

·       All H-Fields is used to describe the colour for magnetic field components.

·       All Fields is used to describe the colour for all field components.

·       All Cursors is used to describe the attributes for all cursors.

·       All Texts is used to describe the colour for all texts.
