4.11.6                    3D Viewer Settings

The  button in 3D Viewer tab and Type->Viewer->Settings… command from main menu or context menu invoke 3D Viewer Settings dialogue for changing display options for 3D Viewer display.

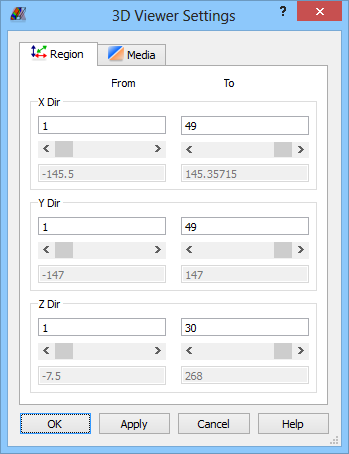

With the Region tab structure limited in X-dir, Y-dir and Z-dir can be displayed.

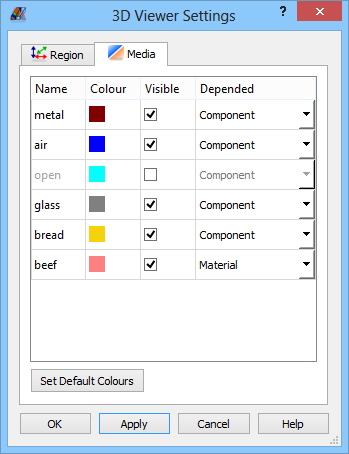

The Media tab lists media which are read from *.pro file. The rows with unused media are grey. The media used in the structure can be ticked On/Off in Visible column, which enables their visibility on the display. In the Depended column, two dependence conditions are available: Component (default) or Media. If Component dependence is chosen for a particular medium, the display will show the distribution of selected electromagnetic quantity in this medium. If Material option is set, only the object solid will be displayed (no electromagnetic component values will be shown) in a chosen medium colour.

In the Colour column, user can set colours assigned to each medium. Default media colours are the same as in the QW-Editor. The Set Default Colours button restores media colours like in the QW‑Editor.
